Spare parts for protection and safety valves
replacement cartridge for RPZ backflow preventer BA PROTECT and FK-4 RPZ backflow preventer outlet
figure 360 00 / 366 00
  • suitable for figure 360 0G, 367 01/02 and 366 0G
Outlet-side replacement CV for RPZ backflow preventer BA PROTECT and FK-4 RPZ backflow preventer outlet
figure 360 02 / 366 02 / 367 02 001
  • suitable for figure 360 0G, 367 01/02 and 366 0G
ball valve
figure 361 99 004
  • suitable for PROTECT backflow preventer type BA, figure 361 01
seal kit
figure 361 99 005
  • suitable for PROTECT backflow preventer type BA, figure 361 01
seal kit
figure 361 99 008
  • suitable for PROTECT backflow preventer type BA, figure 361 01
drain valve
figure 361 98 001
  • suitable for PROTECT backflow preventer type BA, figure 361 01
check valve inlet side
figure 361 98 002/006
  • suitable for PROTECT backflow preventer type BA, figure 361 01
check valve outlet side
figure 361 98 003/007
  • suitable for PROTECT backflow preventer type BA, figure 361 01
CV replacement tool RPZ backflow preventer BA
figure 361 99 009
  • suitable for PROTECT backflow preventer type BA, figure 361 01
CV replacement tool for RPZ backflow preventer BA
figure 361 99 010
  • suitable for part no. 3610115000
  • suitable for PROTECT backflow preventer type BA, figure 361 01
slotted ring removal and installation tool for FK-4
figure 367 09 001
  • to exchange the grooved ring packing of FK-4 RPZ backflow preventer outlet type BA DN 15, DN 20 and DN 25
service set for RPZ backflow preventer outlet for appartments Type BA
figure 368 00 001
  • replacement cartridge incl. secondary CV RPZ backflow preventer outlet for appartments
union-adaptor for RPZ backflow preventer outlet for appartments Type BA
figure 368 03 001
  • inlet R 1/2, outlet union nut G 1/2 with O-ring
3HM04P pump for FK-5
figure 369 11 020
  • suitable for figure 369 00
5HM05P pump for FK-5
figure 369 11 025
  • suitable for figure 369 00
pressure transmitter type 501 for FK-5 DN 20 and DN 25
figure 369 12 001
  • suitable for figure 369 00
pressure transmitter type 525 for FK-5 DN 20 and DN 25
figure 369 12 002
  • suitable for figure 369 00
Solenoid valve for FK-5 and FK-5 PRO
figure 369 13 001
  • suitable for figure 369 00
anti-pollution check valve DN 25 for FK-5 DN 20 and DN 25
figure 369 14 001
  • suitable for figure 369 00
quarter turn stop valve for FK-5
figure 369 15 020
  • suitable for figure 369 00
quarter turn stop valve for FK-5
figure 369 15 025
  • suitable for figure 369 00
Actuator for FK-5 and FK-5 PRO
figure 369 16 001
  • suitable for figure 369 00
controller for FK-5
figure 369 17 001
  • suitable for figure 369 00
controller for FK-5
figure 369 17 002
  • suitable for figure 369 00
cover for FK-5 DN 20 and DN 25
figure 369 18 001
  • suitable for figure 369 00
pump relay for controller FK-5 DN 20 and DN 25
figure 369 19 001
  • suitable for figure 369 00
cone-type holder for check valve FK-5
figure 369 20 001
  • suitable for figure 369 00
quarter turn stop valve bonnet for FK-5
figure 369 21 020
  • suitable for figure 369 00
quarter turn stop valve bonnet for FK-5
figure 369 21 025
  • suitable for figure 369 00
Cap for Filter Type F
figure 700 00
  • suitable for pressure reducing valve, filter, and safety groups according to figure 710, 712, 713, 714, 715 and 716
  • including o-ring and fixing screws
  • for operation without function module
  • made of black plastic
Drain funnel for backflow preventer CA
figure D7100 362 02 001
  • suitable for figure 362 2G
bonnet with check function for combined stop and check valve
figure E0101 137 00
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
  • EPDM-seat gasket
  • suitable for figure 137 02
bonnet for FK-4 RPZ backflow preventer outlet type BA, DN 50
figure E0101 367 01 050
  • with actuating grip
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • gunmetal cone
  • EPDM-seat gasket
bonnet with check function for combined stop and check valve
figure E0101 160 01
  • suitable for e.g. figure 160 and figure 193
  • incl. EPDM-bonnet gasket
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • check valve with SST spring
bonnet for check valve
figure E0101 162 00
  • suitable for figure 162, 164, 169, 195
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • incl. EPDM-bonnet gasket
  • check valve with SST spring
shut off bonnet for combined stop and check valve with cartridge
figure E0109 145 02
  • suitable for figure 145 2G
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • maintenance-free spindle sealing with self-lubricating and under pressure replaceable EPDM-lip gasket
  • EPDM-seat gasket
  • incl. EPDM-bonnet gasket
top part for FK-4 RPZ outlet valve type BA DN 15-20
figure E0109 367 01 020
  • with actuating grip
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • gunmetal cone
  • EPDM-seat gasket
bonnet for FK-4 RPZ backflow preventer outlet type BA, DN 25
figure E0109 367 01 025
  • with actuating grip
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
  • gunmetal cone
  • EPDM-seat gasket
pressure relief valve 0.8 MPa incl. telescope drain tundish
figure E0109 715 01
  • suitable for safety groups according to figures 714, 715 and 716
pressure relief valve 1.0 MPa incl. telescope drain tundish
figure E0109 716 01
  • suitable for safety groups according to figures 714, 715 and 716

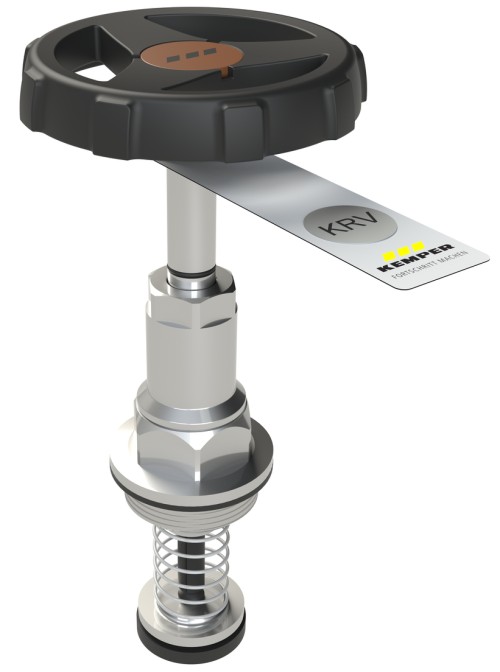

stainless steel head part for combined stop and check valves, shut off bonnet with check valve
figure E0120 060 00
  • suitable for figure 060 01 and 060 1G
  • wetted parts made of stainless steel
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
test valve for RPZ backflow preventer PROTECT
figure J7105 360 00
  • to test the function of FK-4 RPZ backflow preventer using the differencial pressure measurement set (figure 360 99)
threaded plug
figure J8101 173 00
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
insulating shell
figure N0100 365 00 001
  • suitable for heater filling combination, type BA, Fig. 365 0G
CV cartridge
figure P4100 158 00
  • for combined stop and check valve figure 145 2G, pass anti-pollution check valve 158 1G und safety group 714 0G, 715 0G, 716 0G
pressure reducing cartridge
figure P6100 364 00 020
  • suitable for heater filling combination, type BA, Fig. 365 0G
pressure gauge
figure T5100 364 00 001
  • suitable for heater filling combination, type BA, Fig. 365 0G
Cover for FK-5 PRO
figure 369 52 001
  • cover made of EPP
  • suitable for break tank station FK-5-PRO, figure 369 30 and 369 31

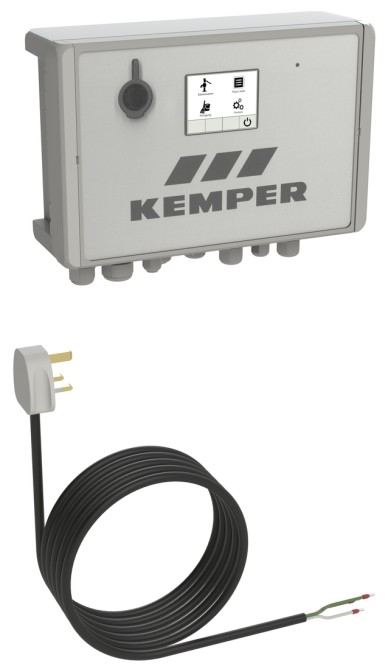

Controller for FK-5 PRO
figure 369 53 002
  • suitable for break tank station FK-5-PRO, figure 369 30 and 369 31
VAV DN25 for FK-5 PRO
figure 369 54 025
  • suitable for break tank station FK-5-PRO, figure 369 30 and 369 31
Pressure sensor for FK-5 PRO
figure 369 55 001
  • suitable for break tank station FK-5-PRO, figure 369 30 and 369 31
Pump for FK-5 PRO
figure 369 56 001
  • suitable for break tank station FK-5-PRO, figure 369 30 and 369 31
