Handwheels and gaskets

box with spare gaskets

figure 476 99 001

with EPDM-gaskets figure C3100 476 07, for union connection figure 476, with 20 pcs. each of DN 15, DN 20, DN 25, DN 32 and 10 pcs. each of DN 40 and DN 50

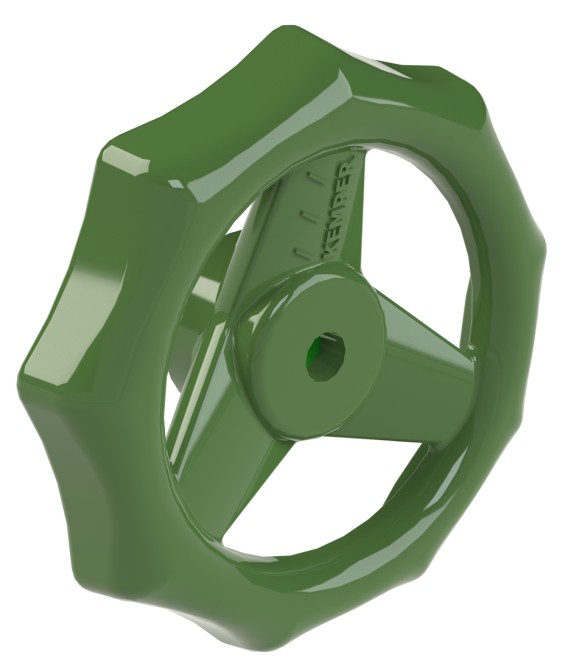

handwheel set

figure 999 00

suitable for free-flow stop valve and free-flow combined stop and antipollution check valve
incl. silver and brown colour plates

EPDM seat gasket

figure B9100 173 08

for stop valves figures 135, 173, and 190 with lip gasket from 06/2006, combination stop- and check valve figure 145 from 06/2006

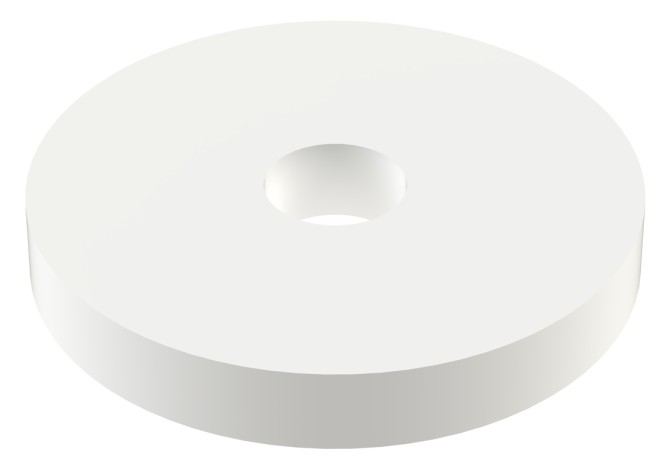

PTFE seat gasket

figure B9100 173 14

for stop valves made entirely of gunmetal according to figure 135, 173, 176 and 190 with top lip gasket manufactured to 05/2006 as well as combined stop and check valves with flow body made entirely of gunmetal according to figure 145 with top seal manufactured to 05/2006
colour: white

Head part gasket

figure C3100 173 07

EPDM gasket for union connections

figure C3100 476 07

spindle seal as self-lubricating EPDM lip gasket for valves

figure C9100 173 03

for stop valves according to figure 135, 173, 176 and 190, combined stop and check valves with flow body according to figure 145 and 146 as well as combined stop and check valves according to figure 160 and 193.
