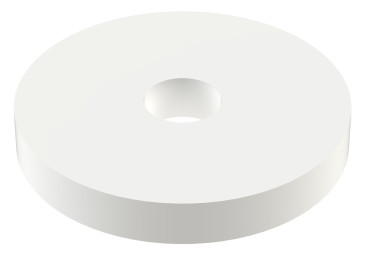

PTFE seat gasket
figure B9100 173 14
- for stop valves made entirely of gunmetal according to figure 135, 173, 176 and 190 with top lip gasket manufactured to 05/2006 as well as combined stop and check valves with flow body made entirely of gunmetal according to figure 145 with top seal manufactured to 05/2006
- colour: white
Product Features
- for stop valves made entirely of gunmetal according to figure 135, 173, 176 and 190 with top lip gasket manufactured to 05/2006 as well as combined stop and check valves with flow body made entirely of gunmetal according to figure 145 with top seal manufactured to 05/2006
- colour: white
| Part no. | for DN | D1 (mm) |
D2 (mm) |
S1 (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| B91001731401500 | 15 | 16.4 | 5.5 | 3 | 0.00 |
| B91001731402000 | 20 | 22 | 5.5 | 3 | 0.00 |
| B91001731402500 | 25 | 28 | 6.5 | 4 | 0.01 |
| B91001731403200 | 32 | 36 | 8.5 | 4 | 0.01 |
| B91001731404000 | 40 | 41.5 | 8.5 | 5 | 0.01 |
| B91001731405000 | 50 | 53 | 10.5 | 5 | 0.02 |
| B91001731406500 | 65 | 68 | 10.5 | 5 | 0.04 |
| B91001731408000 | 80 | 81 | 10.5 | 5 | 0.06 |
