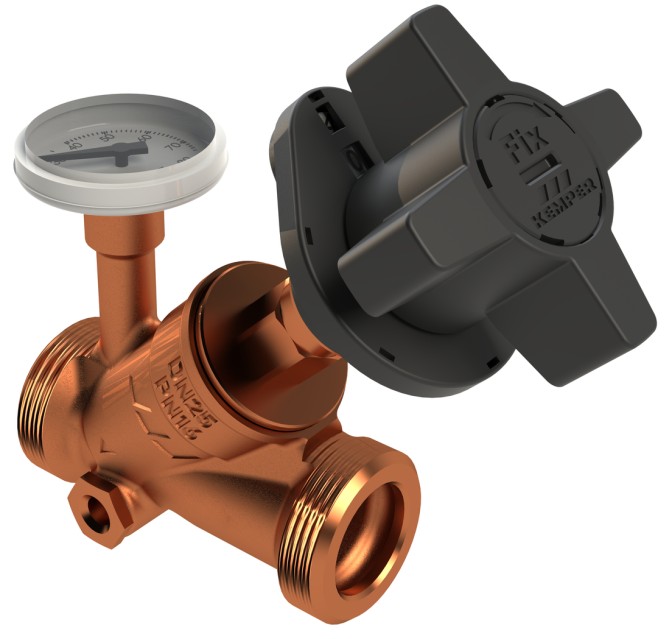

MULTI-FIX-PLUS static balancing valve, union thread

figure 150 6G

for hydraulic balancing of hot water return systems (PWH-C)
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
male union thread
with plugged drain port
with indicator for pre-setting

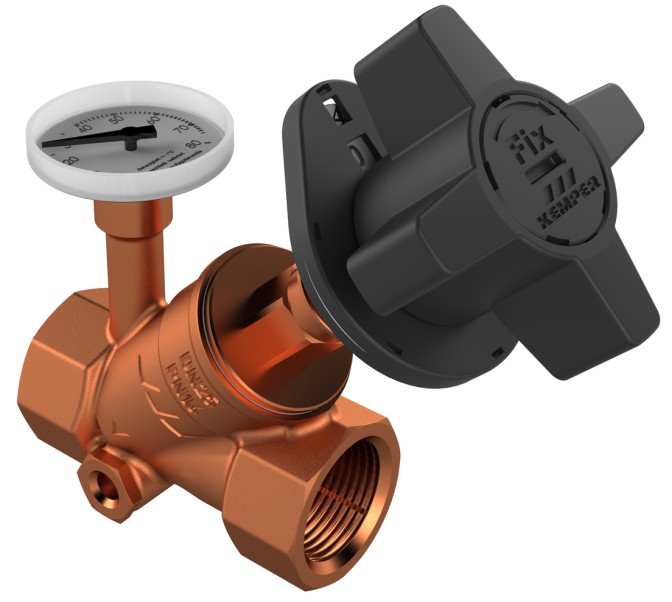

MULTI-FIX-PLUS static balancing valve, FPT

figure 151 06

for hydraulic balancing of hot water return systems (PWH-C)
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
female pipe thread
with plugged drain port
with indicator for pre-setting

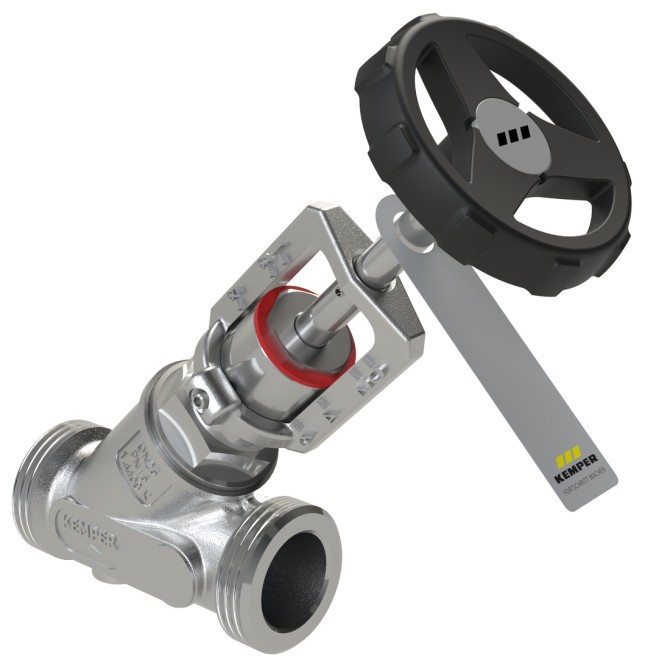

SST throttle valve, union thread

figure 078 0G

for hydraulic balancing of hot water return systems (PWH-C)
wetted parts made of stainless steel
male union thread
indication of pre-setting on bracket
without drain port (drain valve cannot be added)

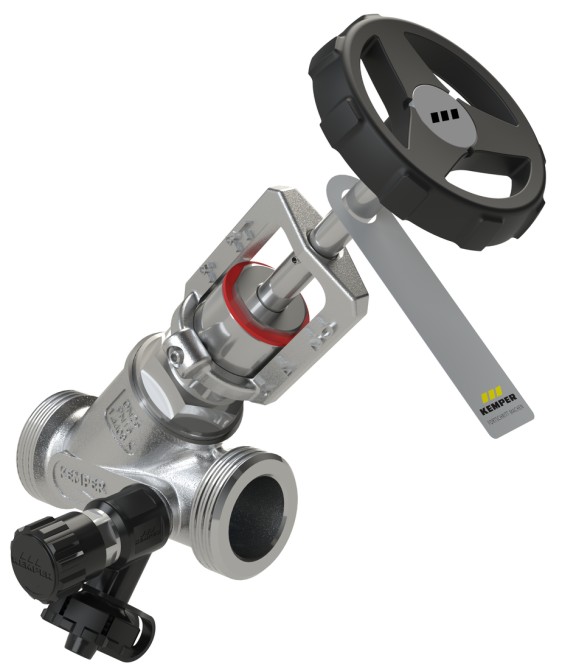

SST throttle valve, with drain valve, union thread

figure 078 1G

for hydraulic balancing of hot water return systems (PWH-C)
wetted parts made of stainless steel
male union thread
indication of pre-setting on bracket
with sidewise drain valve, rotatable hose connection element G 3/4

Back to Product Overview

MULTI-FIX static balancing valve

The manual, static addition

In circulation circuits, only the first balancing valve may be thermostatically controlled. For systems with several hydraulic levels, therefore, additional static balancing valves are required! The MULTI-FIX-PLUS allows fine volume flows to be set on the basis of the valve setting values that have been defined. The setting values can be determined by fastening to the handwheel. Furthermore, the valve can be used during maintenance work, for example, for shutting off the pipework.
