final assembly set Duo, operating cover
figure 595 07
- Chrome-plated components made of plastic
- Suitable for water meter mounting blocks with 65 mm centre distance
- including red and blue indicator plates to indicate hot or cold water
Product Features
- Chrome-plated components made of plastic
- Suitable for water meter mounting blocks with 65 mm centre distance
- including red and blue indicator plates to indicate hot or cold water

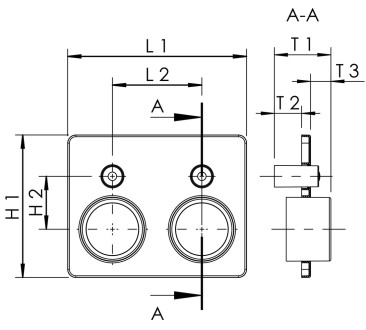

| Part no. | for DN | H1 (mm) |
H2 (mm) |
L1 (mm) |
L2 (mm) |
T1 (mm) |
T2 (mm) |
T3 (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5950700100 | 20 | 175 | 65 | 220 | 110 | 69.5 | 33.5 | 25 | 0.27 |
CAD models
| Part no. | CAD model |
|---|---|
| 5950700100 | Show 3D data |
