final assembly set Mono, operating cover
figure 595 06
- Chrome-plated components made of plastic
- Suitable for XS water meter sections and XS split water meter mounting blocks with 65 mm centre distance
- including red and blue indicator plates to indicate hot or cold water
Product Features
- Chrome-plated components made of plastic
- Suitable for XS water meter sections and XS split water meter mounting blocks with 65 mm centre distance
- including red and blue indicator plates to indicate hot or cold water

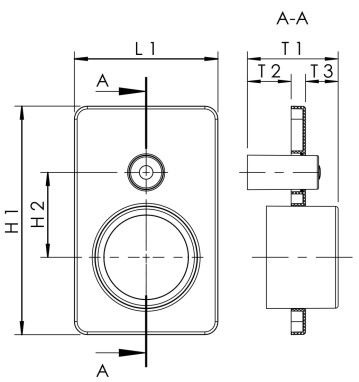

| Part no. | for DN | H1 (mm) |
H2 (mm) |
L1 (mm) |
T1 (mm) |
T2 (mm) |
T3 (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 5950600100 | 20 | 175 | 65 | 110 | 69.5 | 33.5 | 25 | 0.16 |
CAD models
| Part no. | CAD model |
|---|---|
| 5950600100 | Show 3D data |
