final assembly set, operating cover
figure 595 05
- Suitable for flush-mounted valves Figure 565
- Suitable for water meter sections Figure 865 and water meter mounting blocks Figure 864 with 120 mm centre distance
- chrome-plated cap
Product Features
- Suitable for flush-mounted valves Figure 565
- Suitable for water meter sections Figure 865 and water meter mounting blocks Figure 864 with 120 mm centre distance
- chrome-plated cap
- chrome-plated sleeve
- chrome-plated collar
- For wall mounting dimensions up to 110 mm

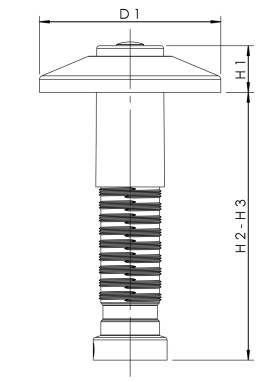

Technical data
| Part no. | D1 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| 5950500100 | 70 | 18 | 0 | 120 | 0.11 |
Planning data
Product Guide
Here you will find, amongst other things, safety information, technical product data, information on installation and commissioning, standards and approvals, as well as accessories. You can download all the data stored for each product in a single PDF file.
