final assembly set, long version
figure 595 02
- Suitable for flush-mounted valves Figure 565
- Suitable for water meter sections Figure 865 and water meter mounting blocks Figure 864 with 120 mm centre distance
- Chrome-plated handle made of plastic
Product Features
- Suitable for flush-mounted valves Figure 565
- Suitable for water meter sections Figure 865 and water meter mounting blocks Figure 864 with 120 mm centre distance
- Chrome-plated handle made of plastic
- chrome-plated collar
- including red and blue indicator plates to indicate hot or cold water
- For wall mounting dimensions from 30 mm to 110 mm

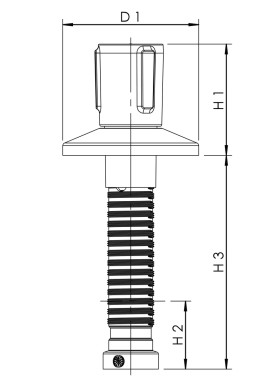

| Part no. | D1 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
Weight (kg) |
|---|---|---|---|---|---|
| 5950200100 | 70 | 57.3 | 35 | 110 | 0.13 |
CAD models
| Part no. | CAD model |
|---|---|
| 5950200100 | Show 3D data |
