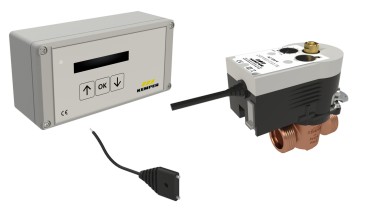

leak detection system with actuator
figure 620 00
- active monitoring system with alarm signal to protect against water damage by reliable detection of leakage in water distribution systems by means of water sensors
- consisting of control unit, water sensor and KHS isolating valve with servo drive 230 V, figure 686 04
- low pressure loss
Product Features
- active monitoring system with alarm signal to protect against water damage by reliable detection of leakage in water distribution systems by means of water sensors
- consisting of control unit, water sensor and KHS isolating valve with servo drive 230 V, figure 686 04
- low pressure loss
- soft close stop valve to avoid water hammer
- for new build and retrofit
- with the functional options: leakage monitoring and timed-controlled protection, leakage monitoring and time-controlled flushing of the drinking water system, protection without leakage monitoring
- leakage control system with integrated timer, for the connection of up to two reporting lines with maximum 25 water sensors, as well as for the connection of max. 10 parallel-operated maximum flow isolating ball valves
- with detachable visual and / or acoustic error signal
- max. 16 programmable events
- display with background light
Standards & approvals
- valve(s) with DVGW approval
- according to DVGW worksheet W 570
- according to accepted materials list from German environmental agency
- up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
- DIN EN 13828
- ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
Technical data
| Part no. | DN | A1 | D1 (mm) |
D2 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
L4 (mm) |
T1 (mm) |
T2 (mm) |
T3 (mm) |
kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6200001500 | 15 | G 3/4 | 3 | 4 | 79 | 30 | 22 | 160 | 46 | 13 | 3 | 58 | 44.5 | 8 | 2.17 |
| 6200002000 | 20 | G 1 | 3 | 4 | 79 | 30 | 22 | 160 | 46 | 13 | 3 | 58 | 44.5 | 8 | 1.96 |
| 6200002500 | 25 | G 1 1/4 | 3 | 4 | 79 | 30 | 22 | 160 | 46 | 13 | 3 | 58 | 44.5 | 8 | 2.46 |
| 6200003200 | 32 | G 1 1/2 | 3 | 4 | 79 | 30 | 22 | 160 | 46 | 13 | 3 | 58 | 44.5 | 8 | 2.63 |
CAD models & characteristic curves
| Part no. | DN | CAD model | Characteristic curve |
|---|---|---|---|
| 6200001500 | 15 | Show 3D data | Show characteristic curve |
| 6200002000 | 20 | Show 3D data | Show characteristic curve |
| 6200002500 | 25 | Show 3D data | Show characteristic curve |
| 6200003200 | 32 | Show 3D data | Show characteristic curve |
