final assembly set Duo
figure 595 04
- Suitable for water meter mounting blocks with 65 mm centre distance
- chrome-plated cap
- chrome-plated sleeve
Product Features
- Suitable for water meter mounting blocks with 65 mm centre distance
- chrome-plated cap
- chrome-plated sleeve
- chrome-plated collar
- including red and blue indicator plates to indicate hot or cold water

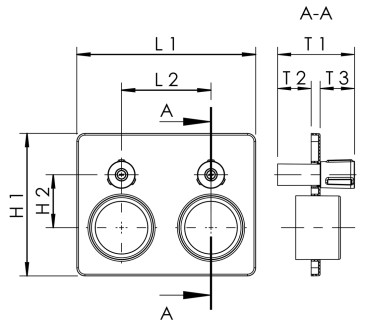

Technical data
| Part no. | for DN | H1 (mm) |
H2 (mm) |
L1 (mm) |
L2 (mm) |
T1 (mm) |
T2 (mm) |
T3 (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5950400100 | 20 | 175 | 65 | 220 | 110 | 94.3 | 41 | 42.3 | 0.31 |
Planning data
Product Guide
Here you will find, amongst other things, safety information, technical product data, information on installation and commissioning, standards and approvals, as well as accessories. You can download all the data stored for each product in a single PDF file.
