final assembly set
figure 595 01
- Suitable for flush-mounted valves Figure 565
- Suitable for water meter sections Figure 865 and water meter mounting blocks Figure 864 with 120 mm centre distance
- Chrome-plated handle made of plastic
Product Features
- Suitable for flush-mounted valves Figure 565
- Suitable for water meter sections Figure 865 and water meter mounting blocks Figure 864 with 120 mm centre distance
- Chrome-plated handle made of plastic
- chrome-plated sleeve
- chrome-plated collar
- including red and blue indicator plates to indicate hot or cold water
- For wall mounting dimensions up to 32 mm

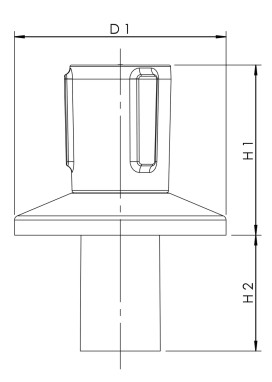

Technical data
| Part no. | D1 (mm) |
H1 (mm) |
H2 (mm) |
Weight (kg) |
|---|---|---|---|---|
| 5950100100 | 70 | 56.3 | 38 | 0.10 |
