- min. installation depth 150 mm
- pressure rating PN 16
- max. operating temperature 65 °C

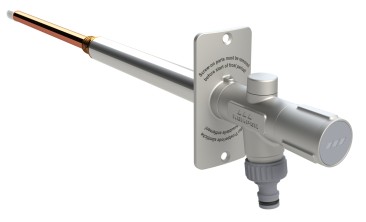

FROSTI® frost-proof outdoor valves, pre-mounted design
figure 579 11
- pre-assembled
- wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
- suitable for fast subsequent installation on already finished outer wall
Product Features
- pre-assembled
- wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
- suitable for fast subsequent installation on already finished outer wall
- inner top part for quick opening operation (two turns)
- high discharge capacity of 40 l / min (1 bar)
- EPDM-seat gasket
- can be extended to any length at construction site
- inlet male pipe thread
- free from dead spots
- incl. hose coupling for common connection systems
- flexible installation length with sliding wall disc in outdoor area
- matt chrome-plated handle with over-twist protection
- with theft-proof socket key operated
- with theft-proof aerator for automatic drainage
- discharge body with mounting surfaces
Standards & approvals
- SVGW approval
- WRAS approval
- according to accepted materials list from German environmental agency
- soundproofing certification according to DIN EN ISO 3822 Class 1
- EN 1717
Technical data

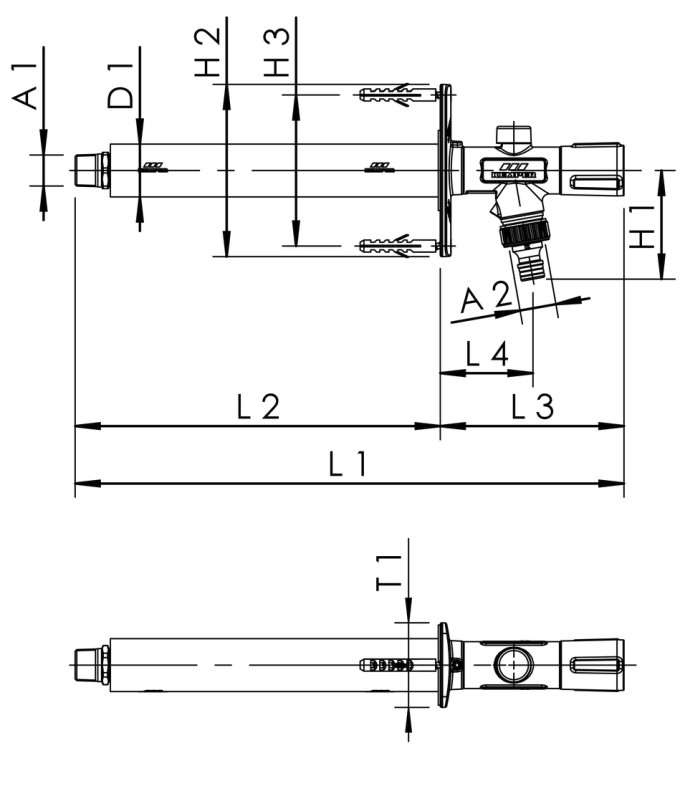

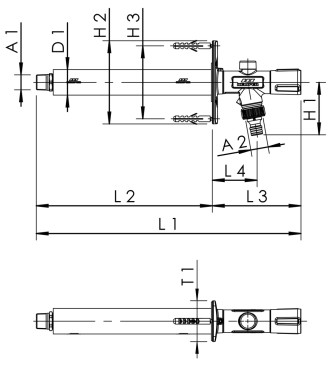

| Part no. | DN | A1 | A2 | D1 (mm) |
D2 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
L4 (mm) |
L5 (mm) |
L6 (mm) |
T1 (mm) |
flow at 0.05 MPa (l/s) |
flow at 0.1 MPa (l/s) |
flow at 0.15 MPa (l/s) |
kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5791101500 | 15 | R 1/2 | G 3/4 | 35 | 15 | 71.5 | 114 | 100 | 363 | 242 | 122 | 61.5 | 495 | 253.5 | 56 | 0.46 | 0.67 | 0.82 | 1.44 |
CAD models & characteristic curves
| Part no. | DN | CAD model | Characteristic curve |
|---|---|---|---|
| 5791101500 | 15 | Show 3D data | Show characteristic curve |
