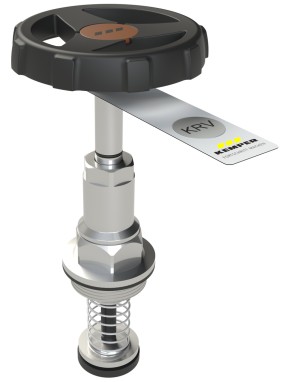

stainless steel head part for combined stop and check valves, shut off bonnet with check valve
figure E0120 060 00
- suitable for figure 060 01 and 060 1G
- wetted parts made of stainless steel
- maintenance-free spindle gasket with self-lubricating EPDM lip gasket
Product Features
- suitable for figure 060 01 and 060 1G
- wetted parts made of stainless steel
- maintenance-free spindle gasket with self-lubricating EPDM lip gasket

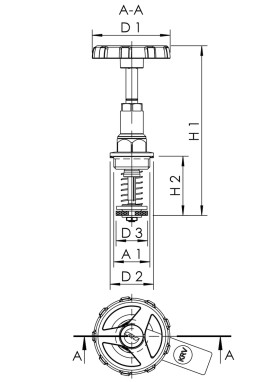

| Part no. | for DN | A1 | D1 (mm) |
D2 (mm) |
D3 (mm) |
H1 (mm) |
H2 (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| E012006000015KP | 15 | G 1/2 | 60 | 26.4 | 17 | 110 | 35.5 | 0.20 |
| E012006000020KP | 20 | G 3/4 | 60 | 32.4 | 23 | 118 | 43.5 | 0.25 |
| E012006000025KP | 25 | G 1 | 70 | 39.9 | 29 | 156 | 54.5 | 0.43 |
| E012006000032KP | 32 | G 1 1/4 | 70 | 49.9 | 37 | 184 | 63.7 | 0.56 |
| E012006000040KP | 40 | G 1 1/2 | 90 | 57.9 | 42 | 186.6 | 68 | 0.77 |
| E012006000050KP | 50 | G 2 | 90 | 69.9 | 54 | 229 | 87.7 | 1.10 |
