Anti-pollution check valve and combined stop and check valves

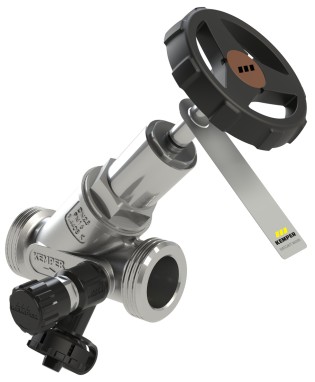

SST combined stop and anti pollution check valve, union thread, with drain valve

figure 060 1G

  • wetted parts made of stainless steel
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
  • EPDM-seat gasket
Downloads
/media/crossbase/fot_pro_per_0601g_sall_ainfs_v1_lj_366x382.jpg
/media/crossbase/zei_pro_sch_0601g_sall_ainfs_v2_lj_366x382.jpg
Site navigation

Product Features

  • wetted parts made of stainless steel
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
  • EPDM-seat gasket
  • male union thread
  • with sidewise drain valve, rotatable hose connection element G 3/4
  • with test port
  • check valve with SST spring
  • wear-resistant stainless steel valve seat
  • with a black handwheel
  • free from dead spots
  • Open position indicator
  • for any installation position

Standards & approvals

  • according to DVGW regulations
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • acc. to DIN EN 13959 provisions
  • ÜA-Reg.-Nr. R-15.2.3-21-17049, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 110 °C
/media/crossbase/zei_pro_sch_0601g_sall_ainfs_v2_lj_404xy.jpg
/media/crossbase/zei_pro_sch_0601g_sall_ainfs_v2_lj_680xy.jpg

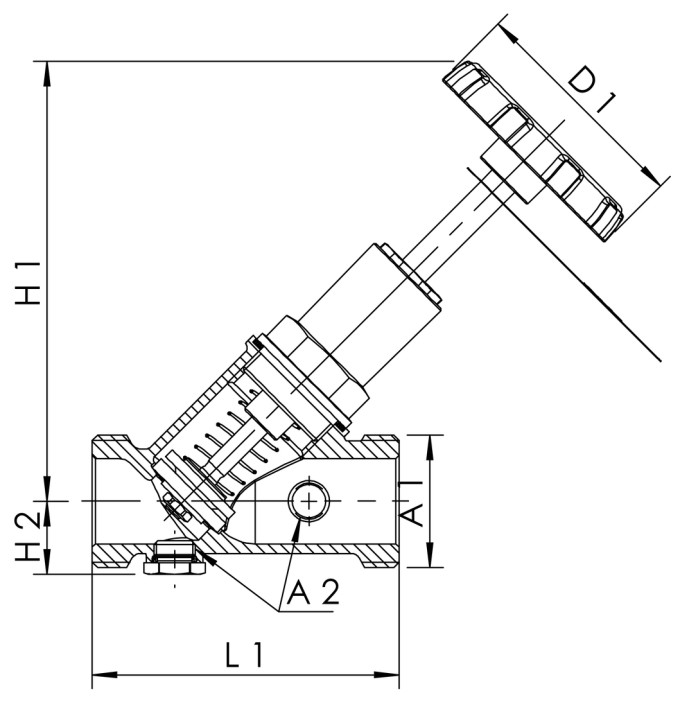

Part no. DN A1 A2 D1
(mm)		 H1
(mm)		 H2
(mm)		 L1
(mm)		 Zeta ∆ popening
(hpa)		 cv
(m³/h)		 kg
0601G01500 15 G 3/4 G 1/4 60 100 20.5 70 4.9 120 4.03 0.52
0601G02000 20 G 1 G 1/4 60 120 21 78.5 3.6 110 8.3 0.66
0601G02500 25 G 1 1/4 G 1/4 70 140 23 97 2.9 130 14.6 1.08
0601G03200 32 G 1 1/2 G 1/4 70 165 26 110 2.6 80 25.3 1.32
0601G04000 40 G 1 3/4 G 1/4 90 190 30.5 130 3.1 80 35.9 1.99
0601G05000 50 G 2 3/8 G 1/4 90 230 35 145 2.3 70 64.7 2.50

CAD models

Part no. DN CAD model
0601G01500 15 Show 3D data
0601G02000 20 Show 3D data
0601G02500 25 Show 3D data
0601G03200 32 Show 3D data
0601G04000 40 Show 3D data
0601G05000 50 Show 3D data
