Anti-pollution check valve and combined stop and check valves

SST combined stop and antipollution check valve, MAPRESS, with drain valve

figure 060 01

  • wetted parts made of stainless steel
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
  • EPDM-seat gasket
Downloads
/media/crossbase/fot_pro_per_06001_sall_ainfs_v1_lj_366x382.jpg
/media/crossbase/zei_pro_sch_06001_sall_ainfs_v2_lj_366x382.jpg
Site navigation

Product Features

  • wetted parts made of stainless steel
  • maintenance-free spindle gasket with self-lubricating EPDM lip gasket
  • EPDM-seat gasket
  • press connection Geberit MAPRESS
  • with sidewise drain valve, rotatable hose connection element G 3/4
  • with test port
  • check valve with SST spring
  • wear-resistant stainless steel valve seat
  • with a black handwheel
  • free from dead spots
  • for any installation position
  • Open position indicator

Standards & approvals

  • according to DVGW regulations
  • according to accepted materials list from German environmental agency
  • up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
  • acc. to DIN EN 13959 provisions
  • ÜA-Reg.-Nr. R-15.2.3-21-17049, WIEN-ZERT

Technical data

  • pressure rating PN 16
  • max. operating temperature 110 °C
/media/crossbase/zei_pro_sch_06001_sall_ainfs_v2_lj_404xy.jpg
/media/crossbase/zei_pro_sch_06001_sall_ainfs_v2_lj_680xy.jpg

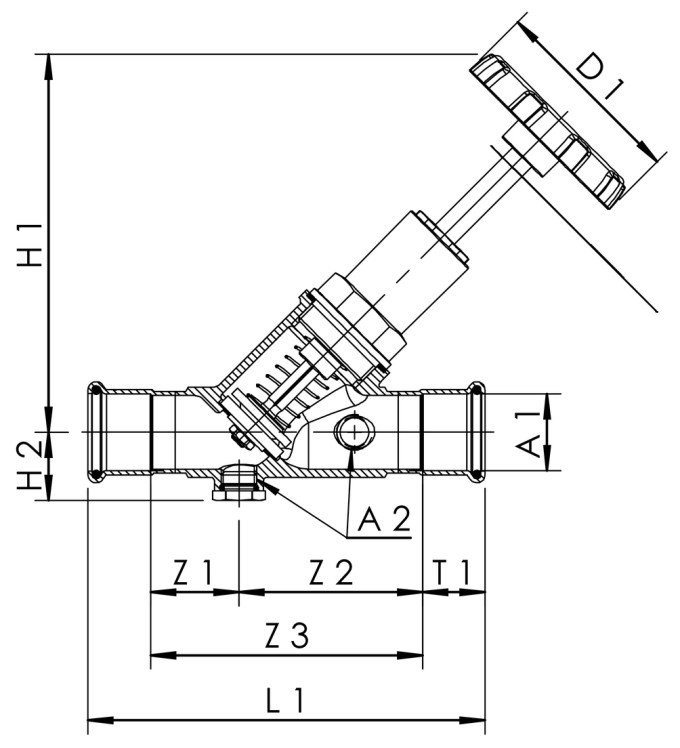

Part no. DN A1
(mm)		 A2 D1
(mm)		 H1
(mm)		 H2
(mm)		 L1
(mm)		 T1
(mm)		 Z1
(mm)		 Z2
(mm)		 Z3
(mm)		 Zeta ∆ popening
(hpa)		 cv
(m³/h)		 kg
0600101500 15 15 G 1/4 60 100 20 112 20 22 50 72 4.9 120 4.03 0.51
0600102000 20 22 G 1/4 60 120 21.5 125 21 26 57 83 3.6 110 8.3 0.69
0600102500 25 28 G 1/4 70 140 25 146 23 35.5 64.5 100 2.9 130 14.6 1.01
0600103200 32 35 G 1/4 70 165 26.5 167 26 34 80.5 115.5 2.6 80 25.3 1.43
0600104000 40 42 G 1/4 90 190 30 189 30 36 93 129 3.1 80 35.9 2.13
0600105000 50 54 G 1/4 90 230 35.5 222 35 41 111 152 2.3 70 64.7 3.08

CAD models

Part no. DN CAD model
0600101500 15 Show 3D data
0600102000 20 Show 3D data
0600102500 25 Show 3D data
0600103200 32 Show 3D data
0600104000 40 Show 3D data
0600105000 50 Show 3D data

Downloads

Data sheet
File type
Product data sheet
pdf
Brochures
File type
Building technology valves and systems
pdf (20.57 MB)
Technical information
File type
Flow Diagram antipollution check valve type EA
pdf (0.08 MB)
