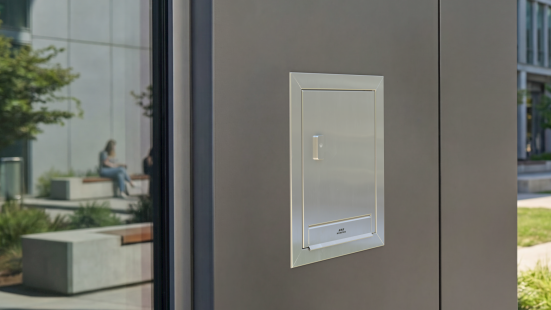

TRESOR Supply station for water and electricity

TRESOR

Supply station for water and electricity
Water and electricity supply in buildings

Reliable, flexible and predictable, aesthetically integrated

Would you like to ensure a safe and reliable supply of water and electricity at a central distribution point within buildings? KEMPER TRESOR was designed specifically for this purpose. Our supply station is suitable for use both indoors and outdoors in buildings of all kinds and can be integrated into any structural layout. With its sophisticated technical features, TRESOR combines practical functionality with the highest levels of operational and supply guarantee.

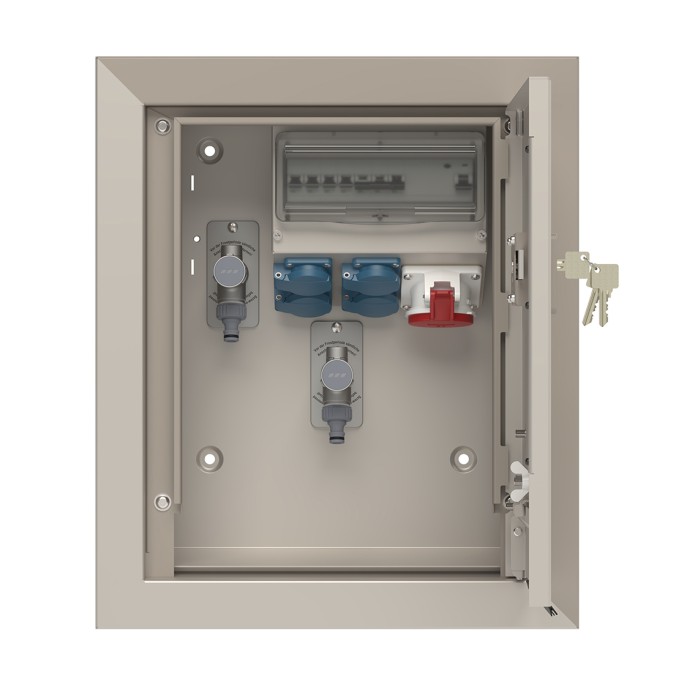

Product Highlights

Please click on the sections for more information.

1
2
3
4
5
6

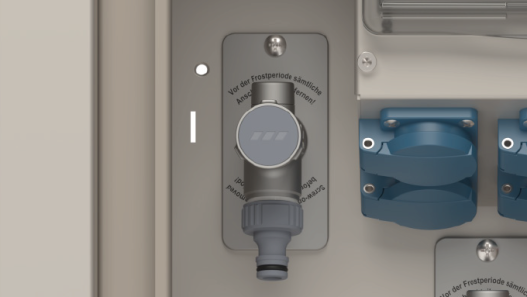

Vandal-proof water supply
TRESOR close-up: vandal-proof water supply

The integrated KEMPER FROSTI® frost-proof outdoor tap ensures a year-round frost-proof water supply that is protected against vandalism. The TRESOR XL version can accommodate up to two FROSTI® units.

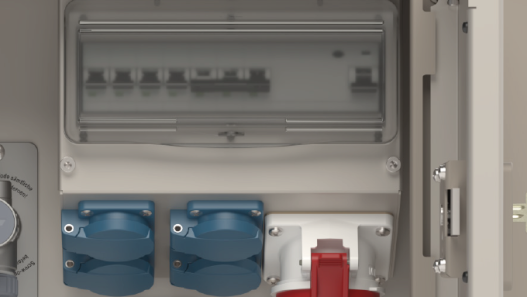

Modularly configurable electrical compartment
TRESOR close-up: electrical compartment

Thanks to the modular design of the electrical compartment, it can be individually equipped with sockets, 230 V connections, high-voltage connections, or fuses. If necessary, individual modules can be easily replaced or expanded, allowing them to be flexibly adapted to different structural and usage requirements.

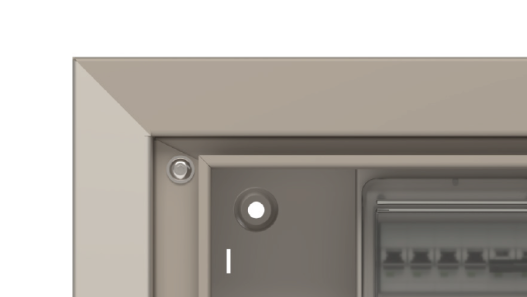

A frame with added value
TRESOR close-up: frame

The newly developed frame stands out thanks to its modern design and additional functionality. It enables the standard-compliant attachment of sealing tapes for façade waterproofing and features an integrated adjustment range of up to 20 mm. This also allows for flexible and safe adaptation to subsequent structural alterations.

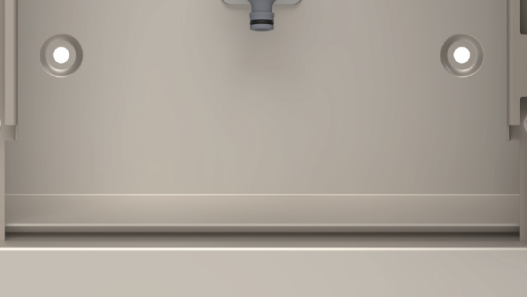

Residual water drainage
TRESOR close-up: residual water drainage

The integrated raised floor allows for controlled drainage of residual water in front of the façade. This prevents water from penetrating the brickwork and reliably protects the building from water damage.

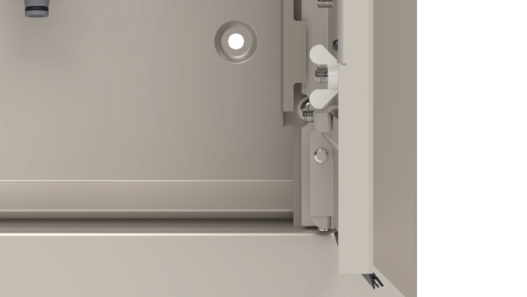

Lockable access panels
TRESOR close-up: lockable access panels

The lockable access panels provide reliable protection for the internal components against vandalism and unauthorised access. This ensures safe and durable use in outdoor areas.

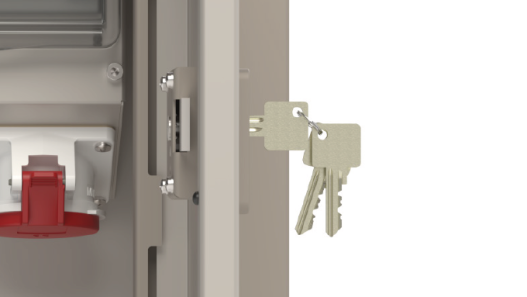

Half-cylinder lock: compatible with all standard locking systems
TRESOR close-up: half-cylinder lock

The KEMPER TRESOR has a half-cylinder lock and can be individually integrated into existing locking systems. This allows for subsequent retrofitting, for example, to a modern transponder lock.

1 / 6

The advantages at a glance

  • Reliable protection against intentional damage and unauthorised access

  • Made from solid, durable stainless steel
  • Available in V4A (1.4404) or, optionally, V5A (1.4539) for highly corrosive environments (e.g. swimming pools)

  • Suitable for flush-mounted and surface-mounted installation
  • Configuration can be customised

  • Modern stainless steel design
  • Seamless integration into façades and walls

TRESOR application: garden

A wide range of application areas

TRESOR is suitable for a wide range of applications in both the private and public sectors, such as:

  • Single-family dwellings
  • Public service stations/WCs
  • Swimming pools and outdoor pools (chlorine-based environment)
  • Underground stations
  • Hotels and hospitality
  • Campsites (motorhome sockets)
  • Clubhouses and shooting ranges
  • Schools and nurseries
  • Hospitals
  • Leisure facilities and parks
  • and much more.

TRESOR application: transponder

Added value

For designers:

Maximum design reliability through digital configuration as well as standard-compliant design and calculation.

For operators:

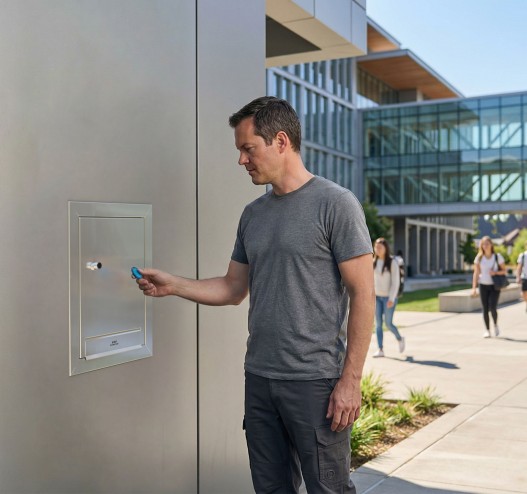

Greater control over infrastructure, reduced risk of damage, and less administrative effort thanks to individually controllable usage rights and customised access options (e.g. via key or individual locking systems with transponders).

For end users:

Simple and reliable outdoor supply with intuitive use – securely protected against unwanted third-party access.

TRESOR in Practice

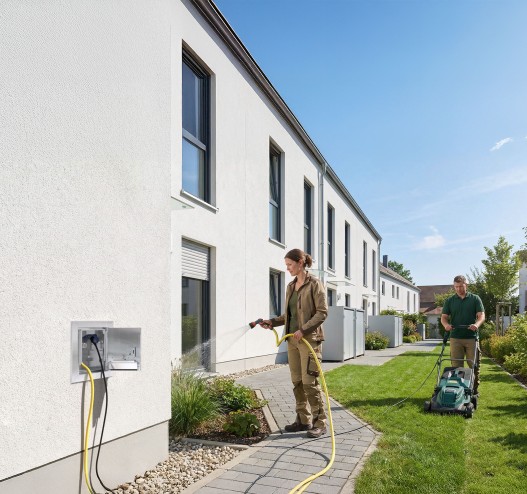

Practical simultaneous draw-off of water and electricity in outdoor areas, e.g. for cleaning paths, mowing lawns, or watering garden plants.

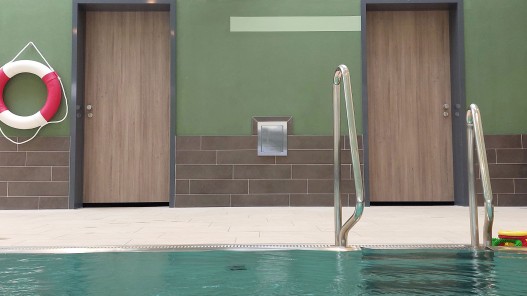

For use in highly corrosive conditions, such as swimming pools with
chlorine-based ambient air, TRESOR is available in the particularly robust
V5A (1.4539) stainless steel setup.

Power supply for private use – securely protected against access by unauthorised third parties.

1 / 3

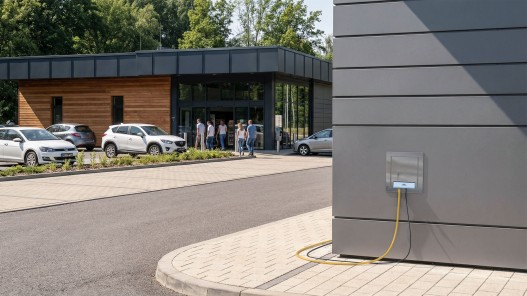

TRESOR application: service station
TRESOR application: swimming pool

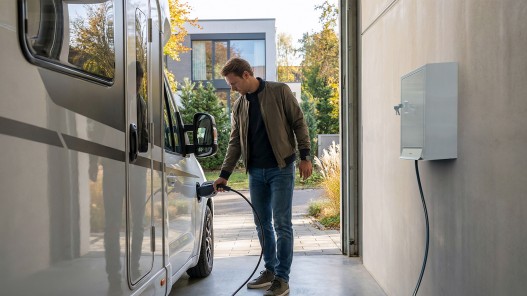

TRESOR application: surface-mounted in a motorhome
Product versions and accessories
Flush-mounted
KEMPER TRESOR XL Figure 217 Installation dimensions for flush-mounted box:
500 x 420 x 168 mm (H x W x D)
KEMPER TRESOR Figure 215 Installation dimensions for flush-mounted box:
350 x 306 x 138 mm (H x W x D)
Surface-mounted
KEMPER TRESOR XL Figure 216 Installation dimensions:
522 x 432 x 185 mm (H x W x D)
KEMPER TRESOR Figure 218 Installation dimensions:
367 x 318 x 155 mm (H x W x D)
Accessories
Mounting bracket for TRESOR Part No.: 2159901600
Mounting bracket for TRESOR XL Part No.: 2159901700
Earthing kit for TRESOR flush-mounted 6 mm² Part No.: 2159902100
Earthing kit for TRESOR flush-mounted 10 mm² Part No.: 2159902200
Earthing kit for TRESOR flush-mounted 16 mm² Part No.: 2159902300
