- max. installation depth 110 mm
- pressure rating PN 16
- max. operating temperature 90 °C

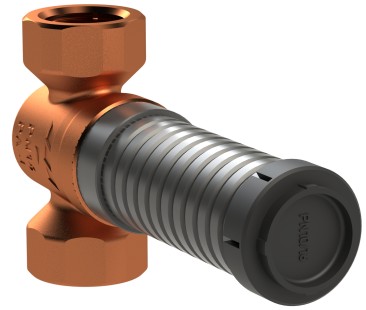

UP quarter turn stop valve for flush-mounted installation, FPT
figure 585 00
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- low pressure loss
- maintenance-free EPDM spindle seal
Product Features
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- low pressure loss
- maintenance-free EPDM spindle seal
- plastic shaft can be shortened
- can be extended with optional extension kit
- female pipe thread
- removable inner top part TOP-ENTRY, with EPDM gasket body and gunmetal ball
- free from dead spots
- for use in combination with DN 25 handle set
Standards & approvals
- DVGW approval
- WRAS approval
- according to DVGW worksheet W 570
- according to accepted materials list from German environmental agency
- soundproofing certification according to DIN EN ISO 3822 Class 1
- DIN EN 1213 / DIN EN 13828
- ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

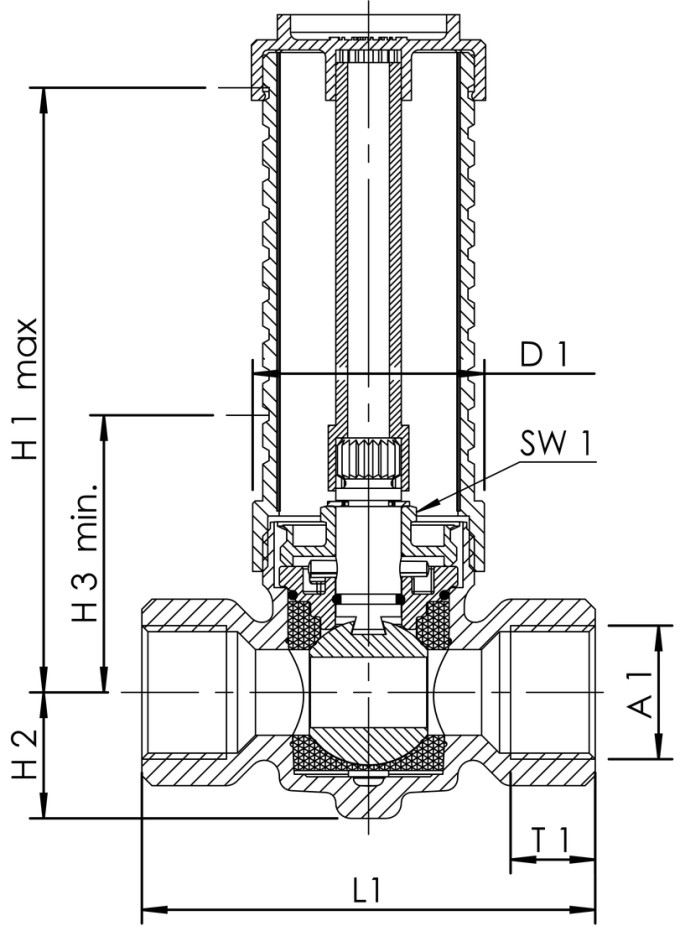

Technical data
| Part no. | DN | A1 | D1 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
L1 (mm) |
SW1 (mm) |
T1 (mm) |
kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 5850001500 | 15 | Rp 1/2 | 46 | 120 | 25 | 55 | 84 | 17 | 14.5 | 0.54 |
| 5850002000 | 20 | Rp 3/4 | 46 | 120 | 25 | 55 | 90 | 17 | 16.5 | 0.62 |
| 5850002500 | 25 | Rp 1 | 46 | 130 | 28 | 70 | 99 | 17 | 18 | 0.93 |
CAD models & characteristic curves
| Part no. | DN | CAD model | Characteristic curve |
|---|---|---|---|
| 5850001500 | 15 | Show 3D data | Show characteristic curve |
| 5850002000 | 20 | Show 3D data | Show characteristic curve |
| 5850002500 | 25 | Show 3D data | Show characteristic curve |
