- min. operating temperature -40 °C
- max. operating temperature 90 °C

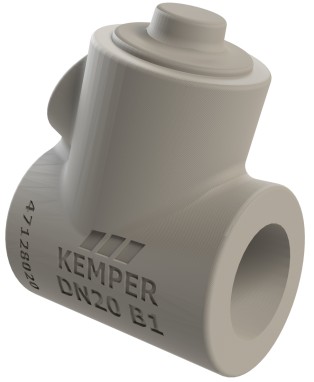

insulation shell for MULTI T-PIECE
figure 471 28
- suitable for MULTI T-PIECE figure 128 0G, KHS temperature sensor Pt1000 figure 628 0G and temperature sensor for KHS HS2 Hygiene Flush Box figure 689 00
- closed-cell foamed polyethylene, sound insulation
- simple installation using the insulation clips or diffusion-resistant lockable using standard adhesives
Product Features
- suitable for MULTI T-PIECE figure 128 0G, KHS temperature sensor Pt1000 figure 628 0G and temperature sensor for KHS HS2 Hygiene Flush Box figure 689 00
- closed-cell foamed polyethylene, sound insulation
- simple installation using the insulation clips or diffusion-resistant lockable using standard adhesives
Standards & approvals
- to meet the requirements of GEG 2023
- building material class B1 according to DIN 4102
- CE marking

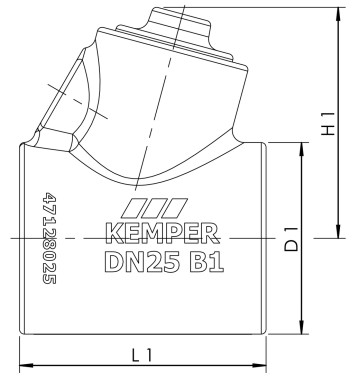

Technical data
| Part no. | for DN | D1 (mm) |
H1 (mm) |
L1 (mm) |
kg |
|---|---|---|---|---|---|
| 4712801500 | 15 | 65 | 90.7 | 95 | 0.05 |
| 4712802000 | 20 | 70 | 94 | 98 | 0.05 |
| 4712802500 | 25 | 80 | 96.4 | 103 | 0.04 |
| 4712803200 | 32 | 90 | 103.7 | 108 | 0.05 |
| 4712804000 | 40 | 120 | 104.7 | 113 | 0.05 |
| 4712805000 | 50 | 140 | 114.4 | 127.5 | 0.09 |
