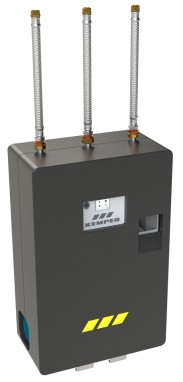

FK-5 PRO break tank station, double port

figure 369 31

View operating and system data conveniently via BMS connection
for the protection of drinking water against non-potable water of fluid category 5 in accordance with DIN EN 1717/DIN 1988-100
Energy-efficient and speed-modulating pump

cover made of EPP
Connection to the pipe by enclosed flex pipe (500mm)
control of external immersion and metering pump possible
readout of data, for example operating status, possible using USB interface
operating times can be defined
easy operation using touch screen
Connection to power supply with type F safety plug
Increase in discharge capacity possible through parallel operation
frost protection monitor
low-noise operation
high performance
plastic drain connection according EN 1717
wetted parts on the drinking water side made of gunmetal, stainless steel and drinking water approved plastics
with coupling nut for flat sealing connection thread including EPDM gasket
Non-drinking water can be integrated (optional)
View operating and system data conveniently via BMS connection
normally closed inlet valve
drain overflow monitoring (optional)
for the protection of drinking water against non-potable water of fluid category 5 in accordance with DIN EN 1717/DIN 1988-100
for wall mounting or installation on optional rack
Energy-efficient and speed-modulating pump
Flushing the PWC line up to 3 times a day
Cleaning of the storage container (optional) possible
Access to digital services as part of the KEMPER PRO functionalities
maintenance requirements in accordance with DIN EN 806-5 must be complied with
For more information on parallel operation, please contact your sales representative
aditional country-specific versions on request
