TRESOR built-in wall cabinet XL
figure 217 00
- Made entirely from stainless steel V4A (1.4404)
- Polished surface (320 grit)
- KEMPER TRESOR complies with protection class IP 45
Product Features
- configuration:
- Leer - Made entirely from stainless steel V4A (1.4404)
- Polished surface (320 grit)
- Lockable to prevent unauthorised use
- KEMPER TRESOR complies with protection class IP 45
- Door with integrated flap version for hose or cable connection for security even during use
- Vandal-resistant locking mechanism for the flap
- As a cabinet for water and electricity
- With integrated residual water drainage
- Door frame with profile cylinder lock as a key lock including 3x bit keys
- Functional frame for the application of sealants supplied on site
- retroffitable and interchangeable on an existing locking system
- Lock with uniform key number on request
- A master key system lock is also available on request

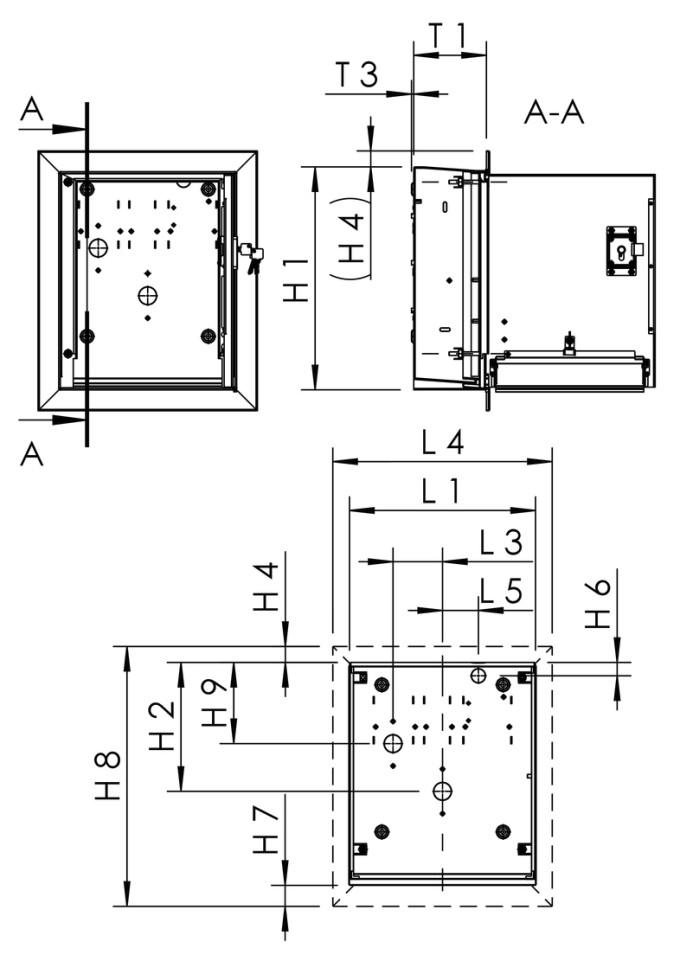

| Part no. | H1 (mm) |
H2 (mm) |
H4 (mm) |
H6 (mm) |
H7 (mm) |
H8 (mm) |
H9 (mm) |
L1 (mm) |
L3 (mm) |
L4 (mm) |
L5 (mm) |
T1 (mm) |
T3 (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2170001500 | 500 | 289 | 36 | 30 | 47 | 583 | 182 | 420 | 111 | 492 | 80.5 | 163 | 5 | 18.72 |
CAD models
| Part no. | CAD model |
|---|---|
| 2170001500 | Show 3D data |
