- pressure rating PN 16
- max. operating temperature 30 °C
- min. primary pressure 0.2 MPa
- min. outlet pressure 0.15 MPa
- max. outlet pressure 0.60 MPa
- factory setting 0.4 MPa
- lower mesh 90 µm
- upper mesh 125 µm
pressure reducing valve-filter combination

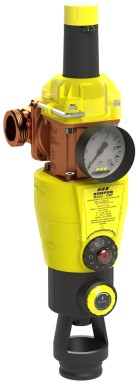

figure 713 0G
- mechanically acting, manual backwash filter
- single-seated valve with balanced plug
- internal parts made of gunmetal, stainless steel and plastic
Product Features
- mechanically acting, manual backwash filter
- single-seated valve with balanced plug
- internal parts made of gunmetal, stainless steel and plastic
- with differencial pressure controlled pollution indicator for maintenance
- opaque filter housing to prevent algae growth
- with manual backwash function for filter cleanup under operation
- PRV housing made of transparent plastic
- outlet pressure adjustable on lockable knurl with pressure scale
- easily maintainable PRV
- with stainless steel mesh at inlet
- male union thread
- exchangable filter cartridge
- rotatable drain according to EN 1717
- free from dead spots
- for horizontal and vertical installation, drain valve down
- adjustable month indicator for next maintenance
- incl. manometer for system pressure secondary side
- incl. allen key
- incl. gunmetal base module
- maintenance requirements in accordance with DIN EN 806-5 must be complied with
Standards & approvals
- DVGW approval
- according to accepted materials list from German environmental agency
- up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
- DIN EN 1213 / EN 13443 / EN 1567
Technical data

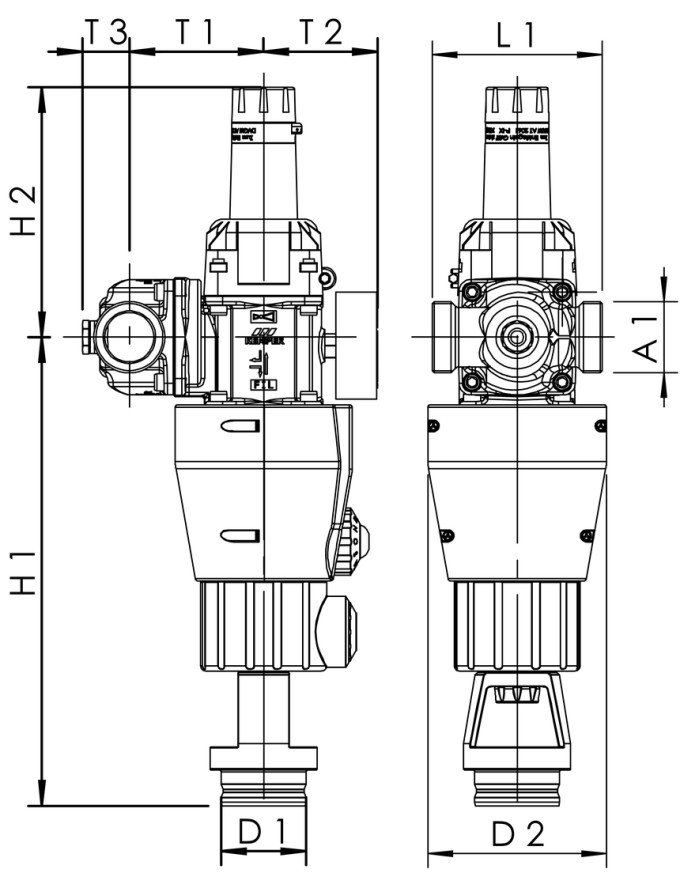

| Part no. | DN | A1 | D1 (mm) |
D2 (mm) |
H1 (mm) |
H2 (mm) |
L1 (mm) |
T1 (mm) |
T2 (mm) |
T3 (mm) |
flow at 0.11 MPa |
kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7130G01500 | 15 | G 3/4 | 50 | 105 | 276 | 146 | 90 | 79 | 67 | 21 | 1.3 | 3.79 |
| 7130G02000 | 20 | G 1 | 50 | 105 | 276 | 146 | 90 | 79 | 67 | 24 | 2.27 | 3.82 |
| 7130G02500 | 25 | G 1 1/4 | 50 | 105 | 276 | 146 | 100 | 79 | 67 | 28 | 3.6 | 3.87 |
| 7130G03200 | 32 | G 1 1/2 | 50 | 145 | 384 | 234 | 105 | 94 | 76 | 30 | 5.8 | 7.45 |
| 7130G04000 | 40 | G 1 3/4 | 50 | 145 | 384 | 234 | 130 | 94 | 76 | 34 | 9.1 | 7.78 |
| 7130G05000 | 50 | G 2 3/8 | 50 | 145 | 384 | 234 | 140 | 94 | 76 | 39 | 14.0 | 8.20 |
CAD models
| Part no. | DN | CAD model |
|---|---|---|
| 7130G01500 | 15 | Show 3D data |
| 7130G02000 | 20 | Show 3D data |
| 7130G02500 | 25 | Show 3D data |
| 7130G03200 | 32 | Show 3D data |
| 7130G04000 | 40 | Show 3D data |
| 7130G05000 | 50 | Show 3D data |
