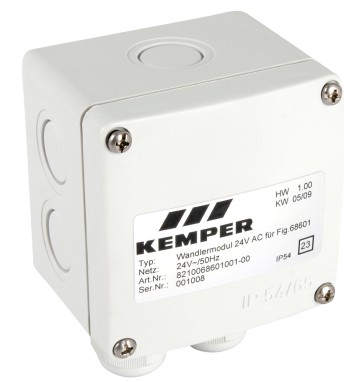

AC/DC converter
figure 686 01 001
- for the operation of the KHS full flow stop valve with spring-reset servo drive 24 V DC with 24 V AC supply voltage figur 686 01
- for installation next to the actuated valve
Product Features
- for the operation of the KHS full flow stop valve with spring-reset servo drive 24 V DC with 24 V AC supply voltage figur 686 01
- for installation next to the actuated valve

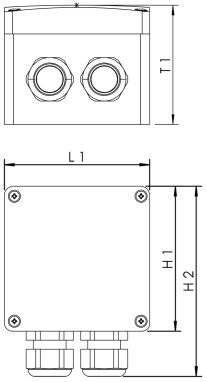

| Part no. | H1 (mm) |
H2 (mm) |
L1 (mm) |
T1 (mm) |
kg |
|---|---|---|---|---|---|
| 6860100100 | 80 | 105 | 80 | 66 | 0.21 |
