- max. installation depth 110 mm
- pressure rating PN 16
- max. operating temperature 90 °C

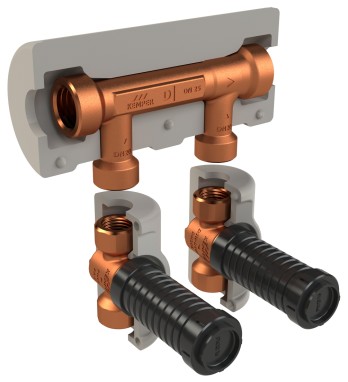

KHS Flow-Splitter unit - dynamic, for flush mounted installation
figure 650 00
- prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
- KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
Product Features
- prevents stagnation in ring pipe installations through forced flow during downstream withdrawals, can be used in cold drinking water (PWC) and hot drinking water (PWH)
- KHS Flow-Splitter - dynamic, according to the Venturi principle, including dynamic cartridge, flow and return branch for connection of outlets / plumbing units
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- KHS Flow-Splitter pass with female thread
- plumbing unit feed pipe with female thread
- plumbing unit return pipe with female thread
- maintenance free
- free from dead spots
- including quarter turn stop valves, female threaded, for flush-mounted installation, figure 585 00
- maintenance-free EPDM spindle seal

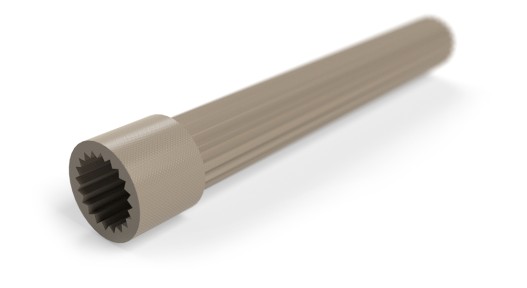

- plastic shaft can be shortened
- removable inner top part TOP-ENTRY, with EPDM gasket body and gunmetal ball
- incl. insulation shell made of closed-cell foamed polyethylene
- for use in combination with DN 25 handle set
Standards & approvals
- valve(s) with DVGW approval
- WRAS approval
- according to DVGW worksheet W 570
- according to accepted materials list from German environmental agency
- up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
- insulation shell building material class B1 according to DIN 4102
- DIN EN 13828
- ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

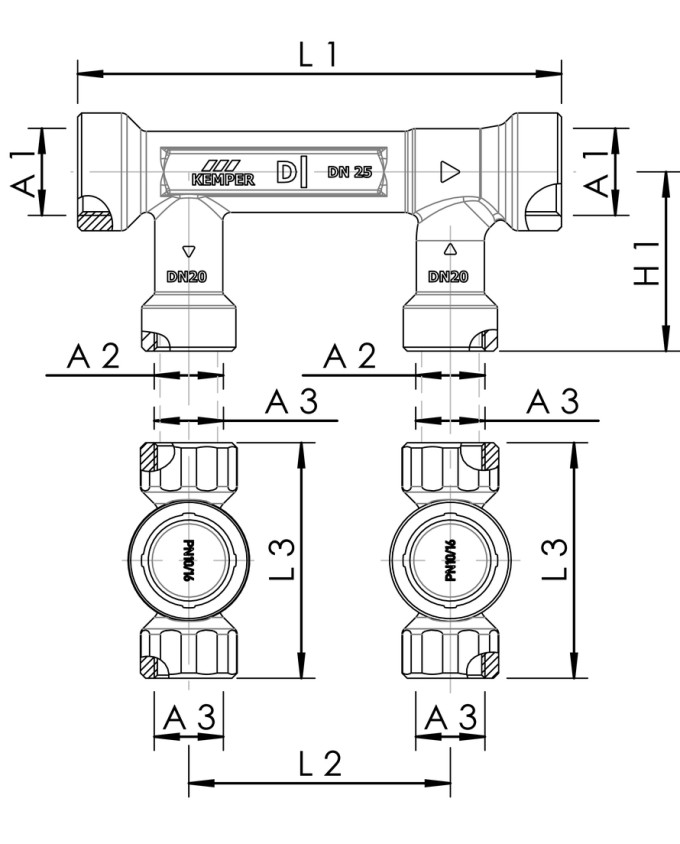

Technical data
| Part no. | passage DN |
Outlets DN |
VAV DN |
A1 | A2 | A3 | H1 (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6500001500 | 15 | 15 | 15 | Rp 1/2 | Rp 1/2 | Rp 1/2 | 48.5 | 185 | 100 | 84 | 1.76 |
| 6500002000 | 20 | 20 | 20 | Rp 3/4 | Rp 3/4 | Rp 3/4 | 58.5 | 185 | 100 | 90 | 2.23 |
| 6500022000 | 20 | 20 | 15 | Rp 3/4 | Rp 3/4 | Rp 1/2 | 58.5 | 185 | 100 | 84 | 2.03 |
| 6500002500 | 25 | 20 | 20 | Rp 1 | Rp 3/4 | Rp 3/4 | 68.5 | 185 | 100 | 90 | 2.48 |
| 6500022500 | 25 | 20 | 15 | Rp 1 | Rp 3/4 | Rp 1/2 | 68.5 | 185 | 100 | 84 | 2.22 |
| 6500003200 | 32 | 20 | 20 | Rp 1 1/4 | Rp 3/4 | Rp 3/4 | 73.5 | 195 | 100 | 90 | 2.57 |
| 6500023200 | 32 | 20 | 15 | Rp 1 1/4 | Rp 3/4 | Rp 1/2 | 73.5 | 195 | 100 | 84 | 2.37 |
| 6500004000 | 40 | 25 | 25 | Rp 1 1/2 | Rp 1 | Rp 1 | 78.5 | 206 | 100 | 99 | 3.77 |
| 6500024000 | 40 | 25 | 15 | Rp 1 1/2 | Rp 1 | Rp 1/2 | 78.5 | 206 | 100 | 84 | 2.89 |
| 6500044000 | 40 | 25 | 20 | Rp 1 1/2 | Rp 1 | Rp 3/4 | 78.5 | 206 | 100 | 90 | 3.03 |
| 6500005000 | 50 | 25 | 25 | Rp 2 | Rp 1 | Rp 1 | 88.5 | 219 | 100 | 99 | 4.39 |
| 6500025000 | 50 | 25 | 15 | Rp 2 | Rp 1 | Rp 1/2 | 88.5 | 219 | 100 | 84 | 3.54 |
| 6500045000 | 50 | 25 | 20 | Rp 2 | Rp 1 | Rp 3/4 | 88.5 | 219 | 100 | 90 | 3.88 |
