- pressure rating PN 16
- max. operating temperature 200 °C
- mesh width outer supporting sieve 0.6 mm
- mesh width inner screen 0.3 mm

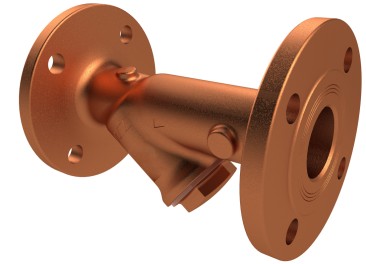

Y-strainer
figure 605 00
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water

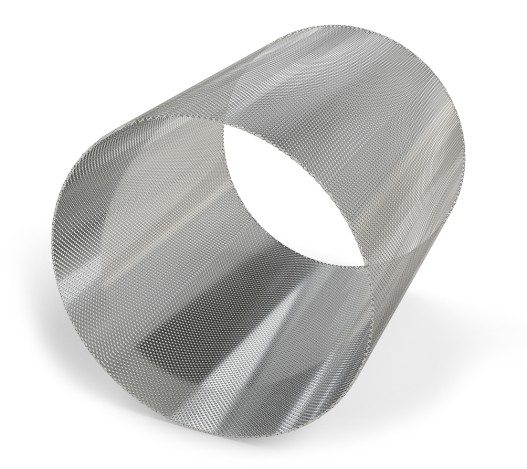

- easily replaceable double mesh made of stainless steel
- flange connection
Product Features
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- easily replaceable double mesh made of stainless steel
- flange connection
- for any installation position
Standards & approvals
- according to accepted materials list from German environmental agency
- DIN EN 558-1
- ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
Technical data

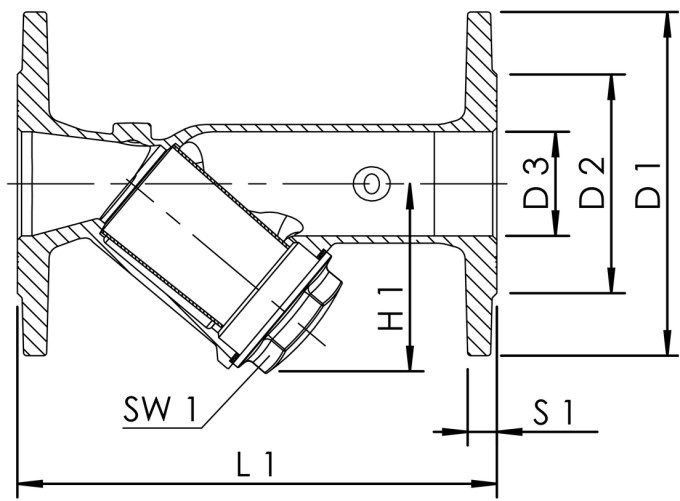

| Part no. | DN | bolt holes | D1 (mm) |
D2 (mm) |
D3 (mm) |
H1 (mm) |
L1 (mm) |
S1 (mm) |
SW1 (mm) |
Zeta | cv (m³/h) |
kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6050005000 | 50 | 4 | 165 | 99 | 50 | 91 | 230 | 17 | 50 | 4.4 | 47.1 | 5.88 |
| 6050006500 | 65 | 4 | 185 | 118 | 65 | 101 | 290 | 17 | 60 | 4.2 | 81.6 | 9.75 |
| 6050008000 | 80 | 8 | 200 | 132 | 80 | 116 | 310 | 19 | 60 | 3.9 | 128 | 12.63 |
| 6050010000 | 100 | 8 | 220 | 158 | 100 | 151 | 350 | 21 | 70 | 16.85 |
CAD models & characteristic curves
| Part no. | DN | CAD model | Characteristic curve |
|---|---|---|---|
| 6050005000 | 50 | Show 3D data | Show characteristic curve |
| 6050006500 | 65 | Show 3D data | Show characteristic curve |
| 6050008000 | 80 | Show 3D data | Show characteristic curve |
