- inside micrometer 110 mm
- max. installation depth 110 mm
- pressure rating PN 16
- max. operating temperature 100 °C
UP-PLUS flush-mounted stop valve for combination with sub-water meter

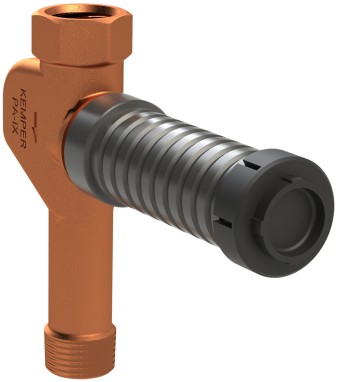

figure 563 02
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- maintenance-free EPDM spindle seal
- EPDM-seat gasket
Product Features
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- maintenance-free EPDM spindle seal
- EPDM-seat gasket
- stainless steel cone
- plastic shaft can be shortened
- inlet female pipe thread, outlet male pipe thread with stabilizing path
- free from dead spots
- with isolating, balancing and pre-setting function
Standards & approvals
- DVGW approval
- SVGW approval
- according to accepted materials list from German environmental agency
- up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
- DIN EN 1213
- ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
Technical data

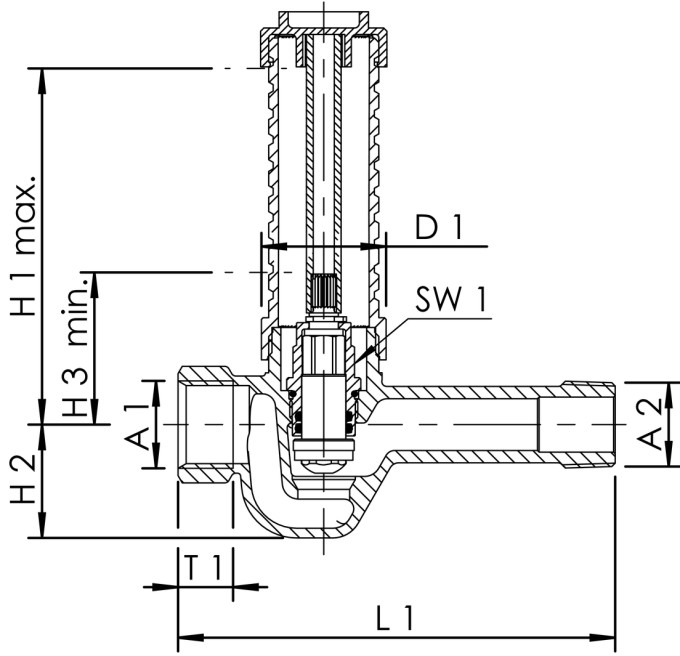

| Part no. | DN | A1 | A2 | D1 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
L1 (mm) |
SW1 (mm) |
T1 (mm) |
Zeta | cv (m³/h) |
kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5630202000 | 20 | Rp 3/4 | R 3/4 | 38.5 | 110 | 35 | 45 | 135 | 17 | 16.3 | 6.9 | 6 | 0.67 |
CAD models & characteristic curves
| Part no. | DN | CAD model | Characteristic curve |
|---|---|---|---|
| 5630202000 | 20 | Show 3D data | Show characteristic curve |
