- max. installation depth 110 mm
- pressure rating PN 16
- max. operating temperature 100 °C

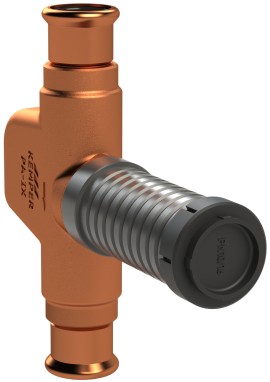

UP-PLUS flush-mounted stop valve, MAPRESS
figure 560 22
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- maintenance-free EPDM spindle seal
- EPDM-seat gasket
Product Features
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- maintenance-free EPDM spindle seal
- EPDM-seat gasket
- stainless steel cone
- plastic shaft can be shortened
- can be extended with optional extension kit
- press connection for Geberit MAPRESS pipe
- free from dead spots
- with isolating, balancing and pre-setting function
Standards & approvals
- DVGW approval
- according to accepted materials list from German environmental agency
- soundproofing certification according to DIN EN ISO 3822 Class 1
- DIN EN 1213
- ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
Technical data

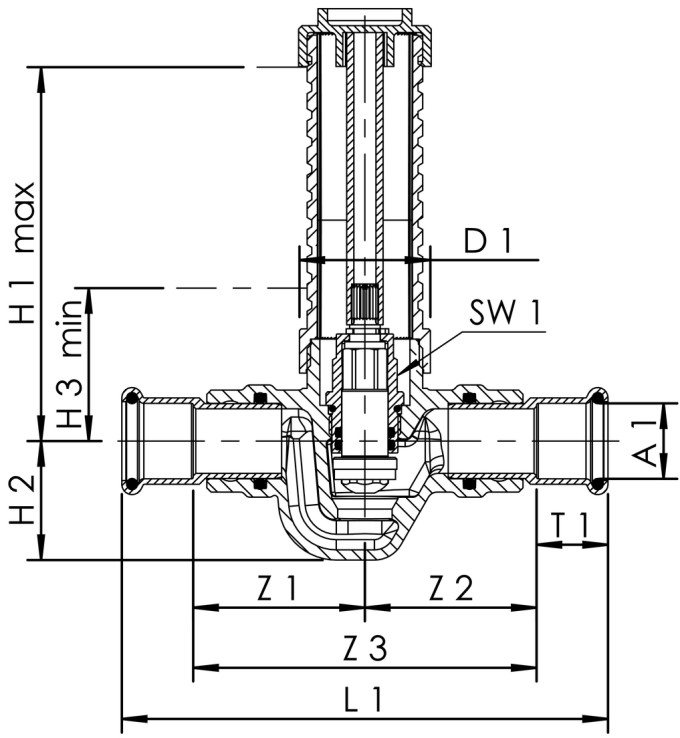

| Part no. | DN | A1 (mm) |
D1 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
L1 (mm) |
SW1 (mm) |
T1 (mm) |
Z1 (mm) |
Z2 (mm) |
Z3 (mm) |
Zeta | cv (m³/h) |
kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5602201500 | 15 | 15 | 38.5 | 110 | 37 | 55 | 140 | 17 | 20 | 49 | 49 | 98 | 2.7 | 5.4 | 0.71 |
| 5602201800 | 15 | 18 | 38.5 | 110 | 37 | 55 | 140 | 17 | 20 | 50.5 | 50.5 | 101 | 2.7 | 5.4 | 0.70 |
| 5602202000 | 20 | 22 | 38.5 | 110 | 35 | 55 | 145 | 17 | 21 | 50.5 | 50.5 | 101 | 6.9 | 6 | 0.74 |
| 5602202500 | 25 | 28 | 46 | 115 | 54 | 55 | 180 | 17 | 23 | 68 | 68 | 136 | 4 | 12.3 | 1.34 |
