- pressure rating PN 10
- max. operating temperature 90 °C
sampling valve for connection to angle stop valve
figure 188 00
- to sample drinking water and determine microbiological parameters according to the German TrinkwV drinking-water regulation
- for simple retrofitting at the output of the angle valve
- suitable for angle valves with 10 mm outlet compression connection
Product Features
- to sample drinking water and determine microbiological parameters according to the German TrinkwV drinking-water regulation
- for simple retrofitting at the output of the angle valve
- suitable for angle valves with 10 mm outlet compression connection
- sampling pipe can be disinfected by flame
- valve completely chrome-plated
- PTFE seat gasket
- inlet 10 x 1.25 pipe, outlet G3/8 male thread with compression nut for 10 mm pipe
- valve is operated with 5 mm allen key (not in package)
- made of brass, nickel plated
- free from dead spots
- incl. Allen key
Standards & approvals
- DVGW approval
- according to accepted materials list from German environmental agency
- UBA BWGL Metalle & DVGW W 551-8

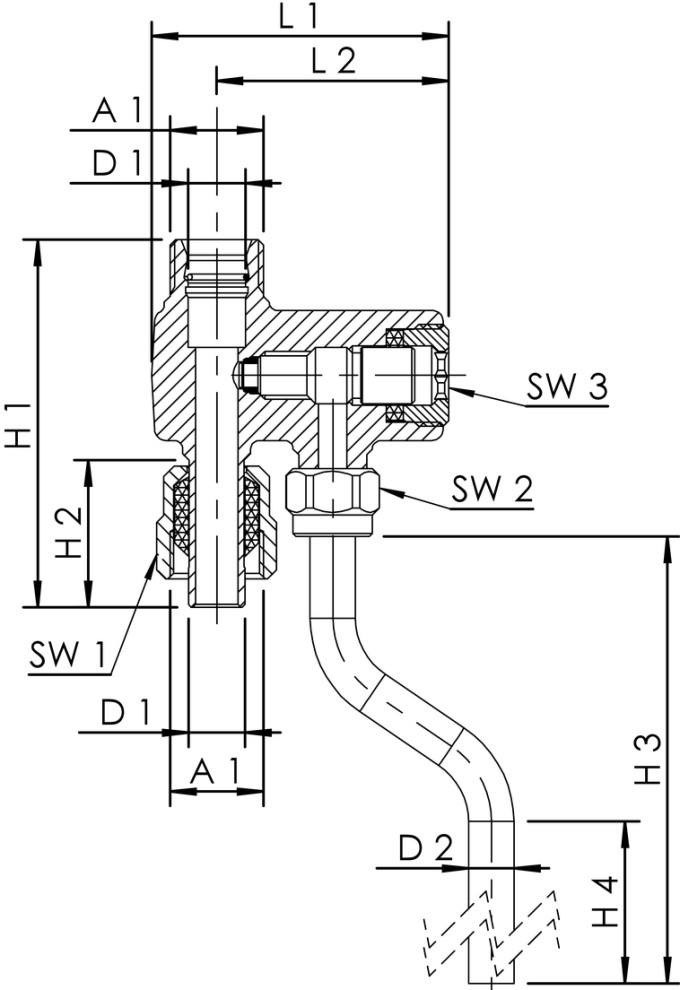

Technical data
| Part no. | DN | A1 | D1 (mm) |
D2 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
H4 (mm) |
L1 (mm) |
L2 (mm) |
SW1 (mm) |
SW2 (mm) |
SW3 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1880001000 | 10 | G 3/8 | 10 | 8 | 65 | 26 | 153.5 | 110.5 | 52.5 | 41 | 19 | 15 | 5 | 0.29 |
