- pressure rating PN 16
- max. operating temperature 110 °C
gunmetal drain valve
figure 185 07
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- with suitability verification according to DIN 1988
Product Features
- wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
- with suitability verification according to DIN 1988
- maintenance-free EPDM spindle seal
- inlet female thread, outlet hose coupling with cap with chain
- with a black handwheel
- free from dead spots
- Open position indicator
- EPDM-seat gasket
Standards & approvals
- according to DVGW regulations
- according to accepted materials list from German environmental agency
- according to DIN EN 1213
- ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

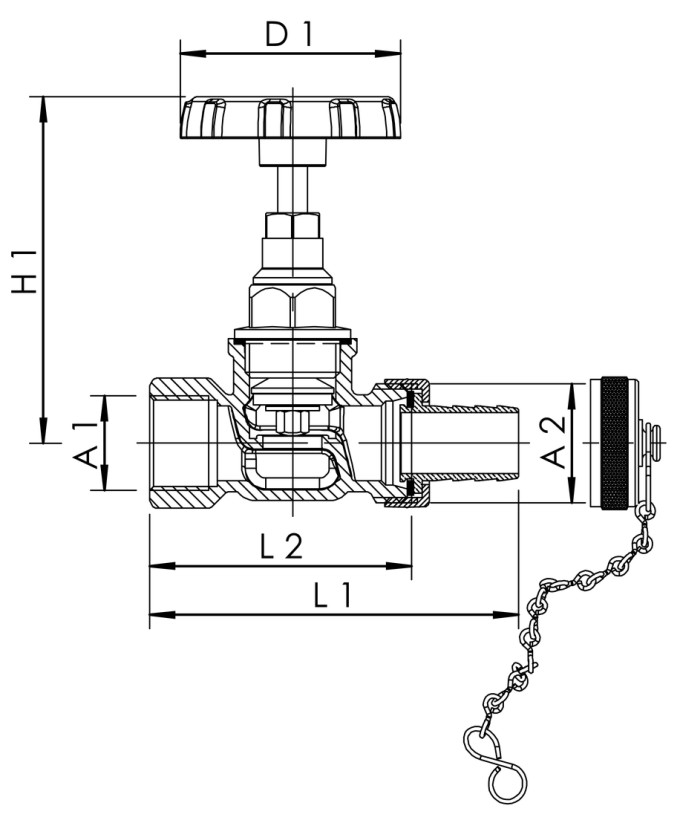

Technical data
| Part no. | DN | A1 | A2 | D1 (mm) |
H1 (mm) |
L1 (mm) |
L2 (mm) |
kg |
|---|---|---|---|---|---|---|---|---|
| 1850701500 | 15 | Rp 1/2 | G 3/4 | 60 | 94 | 91 | 62 | 0.40 |
| 1850702000 | 20 | Rp 3/4 | G 1 | 60 | 96 | 104 | 72 | 0.58 |
