- pressure rating PN 16

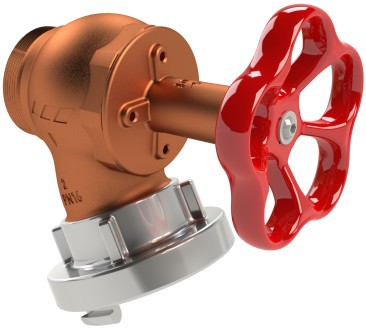

wall hydrant type F, union thread, aluminium C-coupling
figure 112 00
- wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
- for use at wet and dry fire fighting systems
- bonnet suitable for installation of a limit switch
Product Features
- wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water
- for use at wet and dry fire fighting systems
- bonnet suitable for installation of a limit switch
- maintenance-free EPDM spindle seal
- EPDM-seat gasket
- cone rotatable, protected against water hammer
- inlet mail thread, outlet aluminium C-coupling
Standards & approvals
- DIN 14461-3 / DIN 14462 / UBA BWGL Metalle & DVGW W 551-8
Technical data
| Part no. | DN | A1 | D1 (mm) |
H1 (mm) |
H2 (mm) |
L1 (mm) |
Zeta | cv (m³/h) |
kg |
|---|---|---|---|---|---|---|---|---|---|
| 1120005000 | 50 | G 2 | 95 | 156 | 173 | 93 | 3.9 | 55 | 2.16 |
CAD models & characteristic curves
| Part no. | DN | CAD model | Characteristic curve |
|---|---|---|---|
| 1120005000 | 50 | Show 3D data | Show characteristic curve |
