KHS CoolFlow cold water cooler incl. data logger

figure 610 01 002

  • as flow-through drinking water cooler for cooling drinking water with integrated circulation pump
  • for cooling and distributing the cold water as far as the tapping point outlet in the drinking water installation
  • adjustment range of PWC temperature 15 °C to 25 °C

Product datasheet PDF

Show planning data on pdod.de

Downloads
figure 610 01 002
figure 610 01 002
figure 610 01 002
figure 610 01 002
figure 610 01 002
figure 610 01 002
figure 610 01 002
figure 610 01 002
figure 610 01 002

Product Features

  • as flow-through drinking water cooler for cooling drinking water with integrated circulation pump
  • for cooling and distributing the cold water as far as the tapping point outlet in the drinking water installation
  • adjustment range of PWC temperature 15 °C to 25 °C

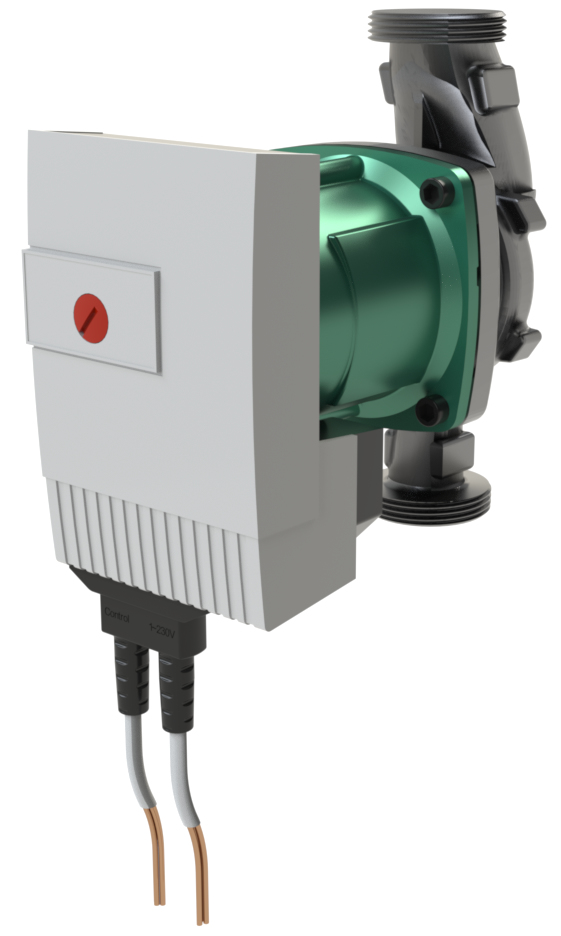

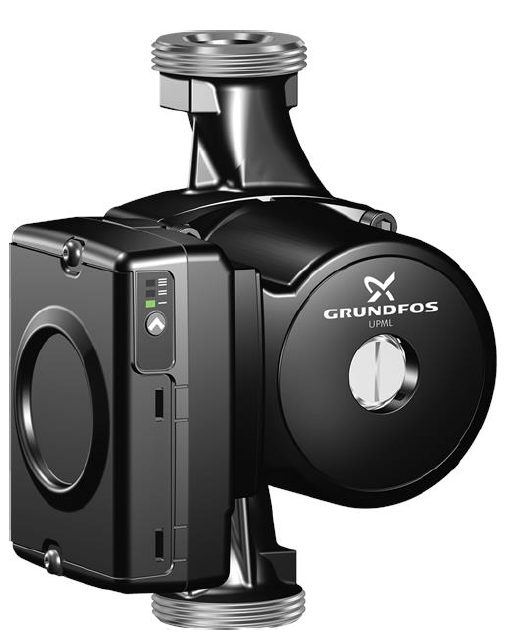

  • consisting of PWM-controlled circulation pump with stainless steel housing and integrated check valve

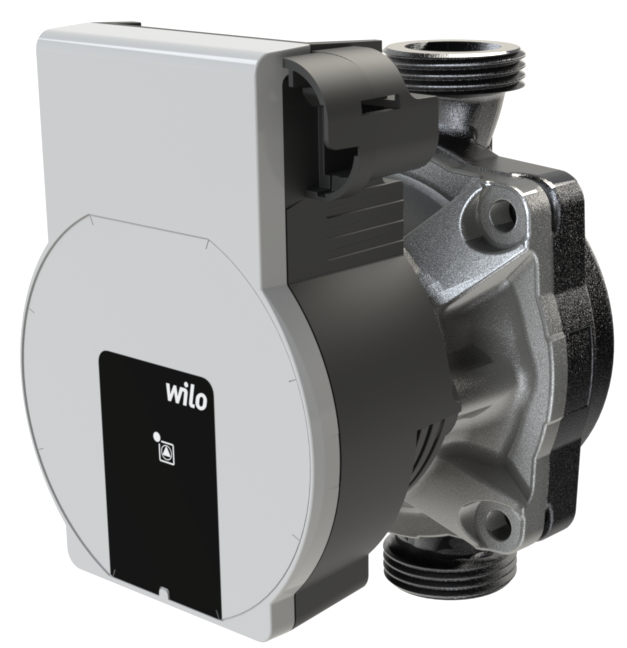

  • consisting of PWM-controlled operating fluid pump
  • with diffusion-tight insulation fitted at the factory
  • space requirements less than 1 m²
  • wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant to aggressive water, stainless steel and drinking water-approved plastics
  • low-noise operation
  • installation on the ground
  • incl. drinking water-side maintenance cut-offs
  • built-in operating fluid buffer tank
  • allows efficient operation of the cold water generator
  • connection to cold water generator hydraulically separated, integration of all cold water generators possible
  • compact design

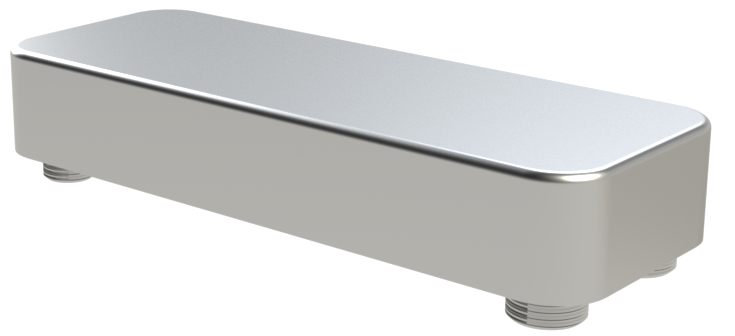

  • plate heat exchanger made of stainless steel grade 1.4401/1.4404

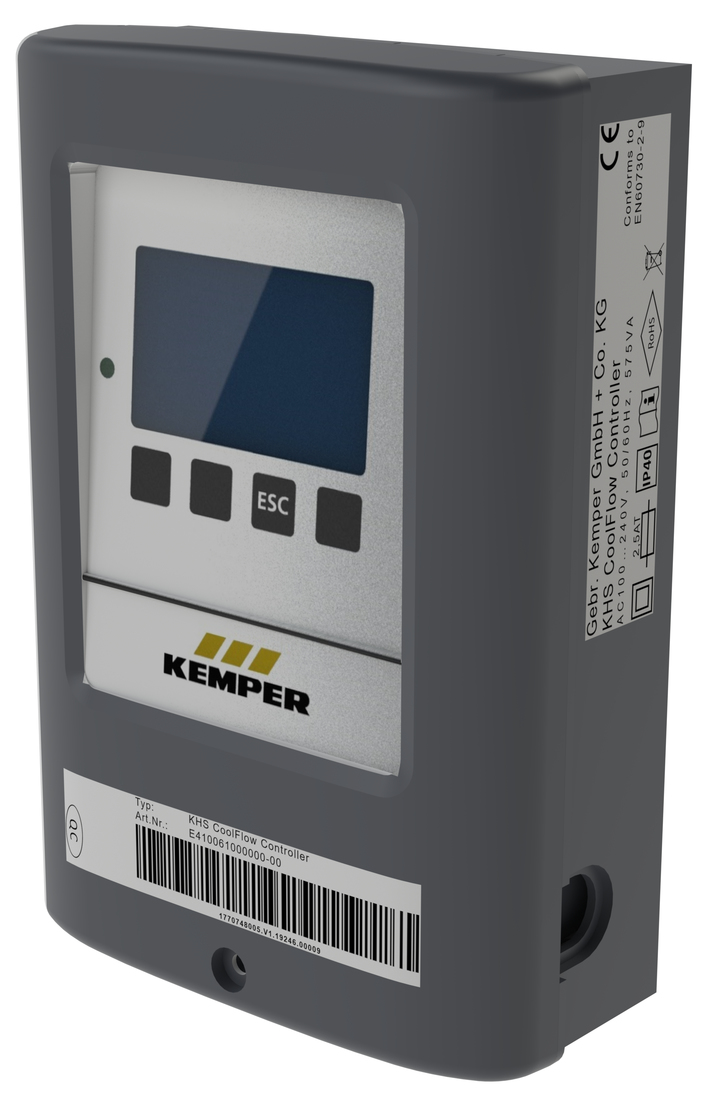

  • electronic control unit for high control quality during operation
  • incl. Pt1000 measuring element
  • factory pre-assembled electrical connection of actuators and sensors to the control unit
  • Contact for recharging request
  • Fault signalling contact

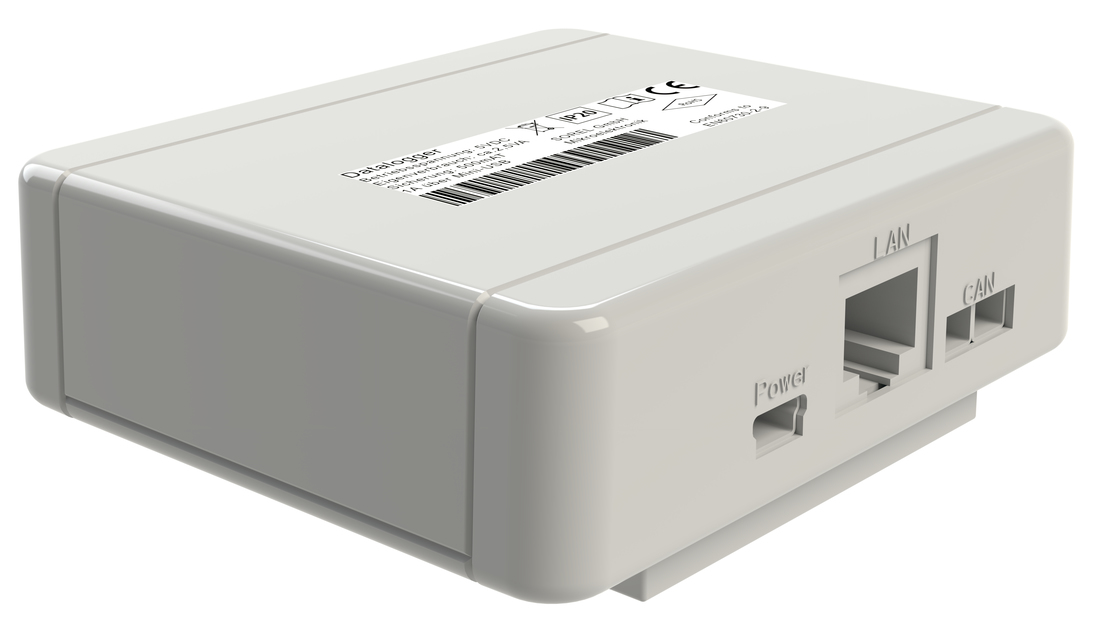

  • Data logger and gateway for connection to the building management system
  • stores all evaluable parameters and serves as an interface device for the BMS/GA via Modbus TCP/IP
  • Data storage on supplied micro SD card
  • Readable and writable data points are made available via Ethernet using the Modbus TCP/IP protocol
  • Lifetime storage capacity thanks to large 4GB SD card
  • LAN RJ45 10/100 MBit/s Ethernet
  • maintenance and commissioning of the plant on request, replaces version 610 01 000

Standards and Approvals

  • plastic parts with KTW and W 270 approval
  • according to accepted materials list from German environmental agency
  • ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT

Technical data

  • pressure stage PN 10 drinking water side and PN 6 equipment side
  • min. ambient temperature 0 °C
  • max. ambient temperature 50 °C
  • max. cooling capacity 6.4 kW
  • power supply 230 V AC
  • electrical power input 185.5 W
figure 610 01 002

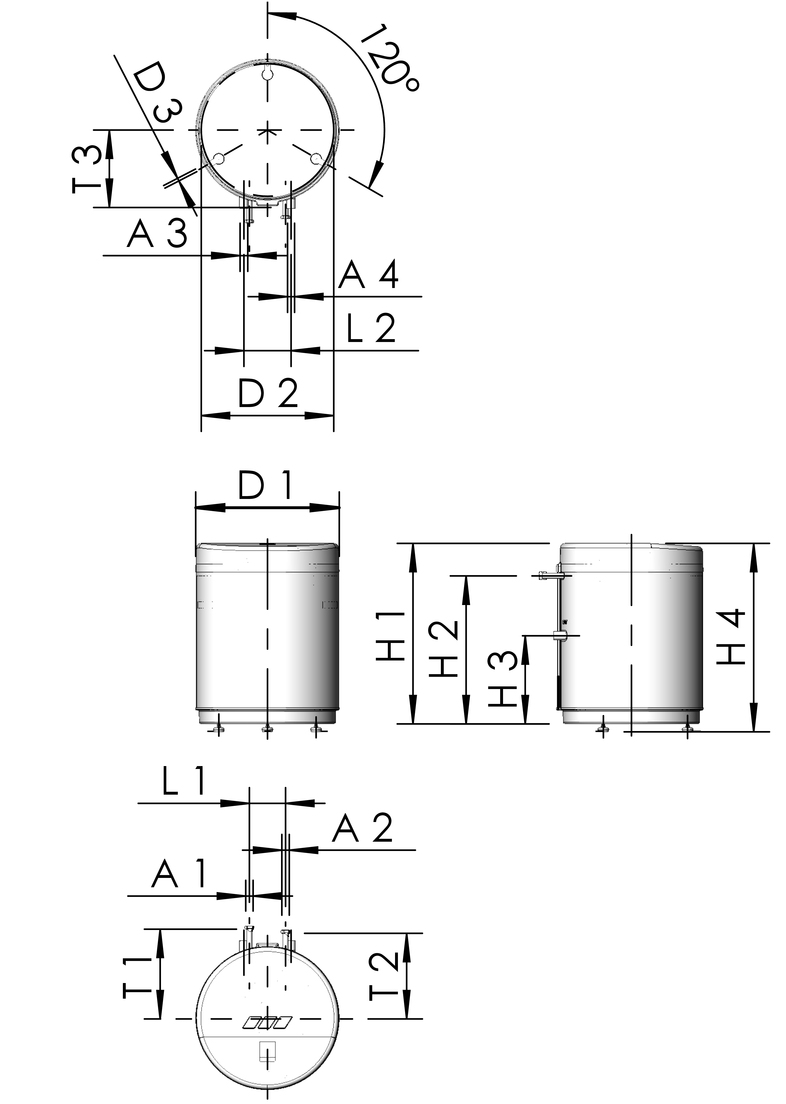

Part no. max. flow rate of
cold water
circulation pump (m³/h) 		max. head of
cold water
circulation pump (m) 		volume of
equipment
(l) 		capacity
(KW) 		A1 A2 A3 A4 D1
(mm) 		D2
(mm) 		D3
(mm) 		H1
(mm) 		H2
(mm) 		H3
(mm) 		H4
(mm) 		L1
(mm) 		L2
(mm) 		T1
(mm) 		T2
(mm) 		T3
(mm) 		kg
6100100200 2 10 100 6.4 G 1 G 1 Rp 1 Rp 1 640 590 13 805 660 392.5 840 161 210 400 381 345 70.00
